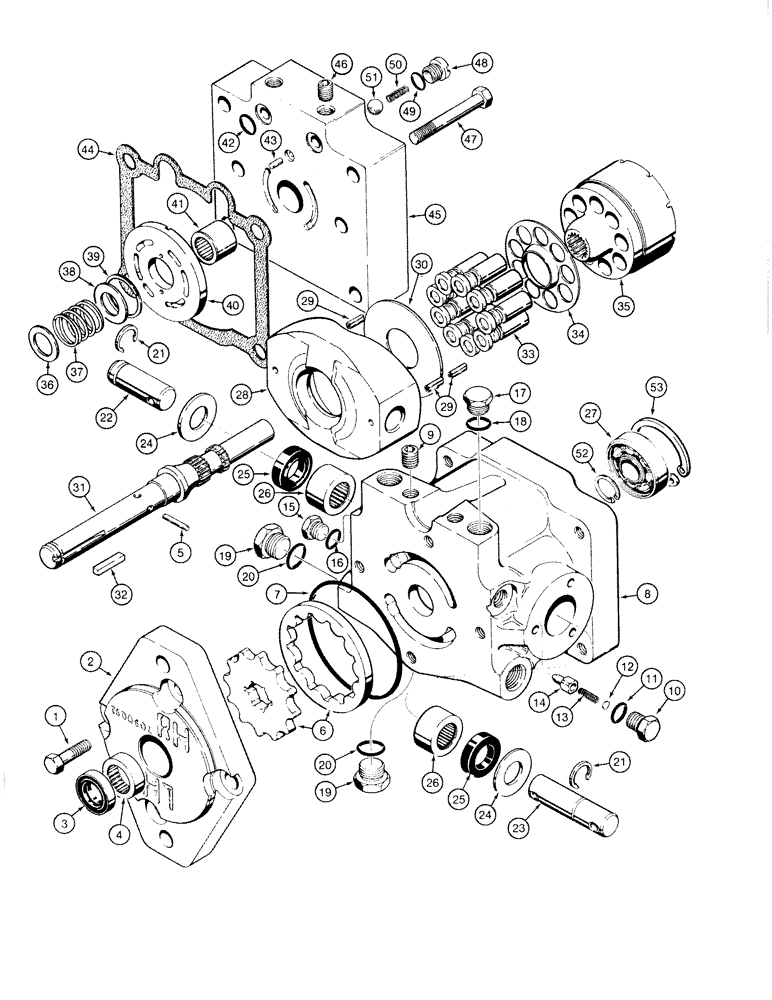

Запчасти Case 1818 (6-04) - VARIABLE DISPLACEMENT PUMP, DIESEL MODELS (06) - POWER TRAIN

D75993

PUMP

ASSEMBLY variable displacement, see Figure 6-14 for mounting parts, Includes: Ref. 1-53

2шт.

1

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

2

N7059

HOUSING

charge pump

1шт.

3

H439172

SEAL

oil

1шт.

4

A27999

NEEDLE BEARING,Needle, 19.05mm ID x 25.41mm OD x 12.7mm W

BEARING needle, charge pump

1шт.

5

N7060

AXLE PIN

PIN charge pump

1шт.

6

N7062

PLATE

GEROTOR charge pump, was P/N H657395

1шт.

7

238-6153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 6, 90 Duro

Charge pump -153, 90 Duro, 3.487" ID x .103" Thk

1шт.

H435797

HOUSING

pump, Includes: Ref. 8-20

1шт.

8

H435797

HOUSING

pump

1шт.

9

F23137

PLUG

pipe, special, charge pressure test port

2шт.

10

N7061

PLUG

relief valve

1шт.

12

D63406

SHIM

KIT shim

1шт.

13

538591R1

VALVE SPRING

SPRING charge relief valve

1шт.

14

D63413

CONE

POPPET charge relief valve

1шт.

15

129998

PLUG,1/2" - 20 ORB

Charge pressure test port, Incl. Ref. 16 Hex Hd, 1/2"-20 ORB

1шт.

17

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 18 Hex Hd, 9/16"-18 ORB

2шт.

19

214389

PLUG,3/4" - 16 ORB

Includes Ref. 20 Hex Hd, 3/4"-16 ORB

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

21065R1

SNAP RING,#68, Ext

Ring, Snap, , was P/N D65126 #68, Ext

2шт.

22

D63408

SHAFT

trunnion, short

1шт.

23

D63404

SHAFT

trunnion, long

1шт.

24

H249599

WASHER

special

2шт.

25

H755884

SEAL

lip, trunnion shaft

2шт.

26

629631R91

NEEDLE BEARING

BEARING needle, trunnion shaft, was P/N H756155

2шт.

27

L31005

BALL BEARING

ball, trunnion shaft, was P/N A31187

1шт.

28

D63399

PLATE

swash

1шт.

29

138-2062

PIN,3/16" x 5/8", Coiled

3шт.

30

D63400

PLATE

thrust

1шт.

31

H437098

SHAFT

pump

1шт.

32

D65127

KEY

shaft

1шт.

N14423

LOCK, CYLINDER

BLOCK ASSEMBLY cylinder, Includes: Ref. 33-39

1шт.

33

NSS

NOT SOLD SEPARAT

PISTON pump

1шт.

34

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

35

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER special, front

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING plate

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER special, rear

1шт.

39

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

40

D63411

PLATE

valve

1шт.

41

H437095

NEEDLE BEARING

BEARING roller, shaft

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Cap, was P/N F23125 -014, 90 Duro, .489" ID x .070" Thk

2шт.

43

D65124

PIN

end cap

1шт.

44

H255059

GASKET

housing

1шт.

45

132021A1

CAP

end, was P/N D63397

1шт.

46

214389

PLUG,3/4" - 16 ORB

Was P/N F23137, Includes Ref. 46A Hex Hd, 3/4"-16 ORB

2шт.

46a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

47

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

4шт.

48

D63410

PLUG

check

2шт.

50

D63409

VALVE SPRING

SPRING check valve

2шт.

51

211-212

BALL

chrome alloy steel, 7/16 inch, grade 200

2шт.

52

D46211

SNAP RING,#78, Ext

Ring, Snap, , small #78, Ext

1шт.

53

16242

SNAP RING,1.852", Int, #185

Ring, Snap, , large 1.852", Int, #185

1шт.

54

139422A1

VALVE

bypass, included with end cap, non-functional for this application, not shown

1шт.

55

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

backup, bypass valve, not shown

1шт.

56

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

16

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

49

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
