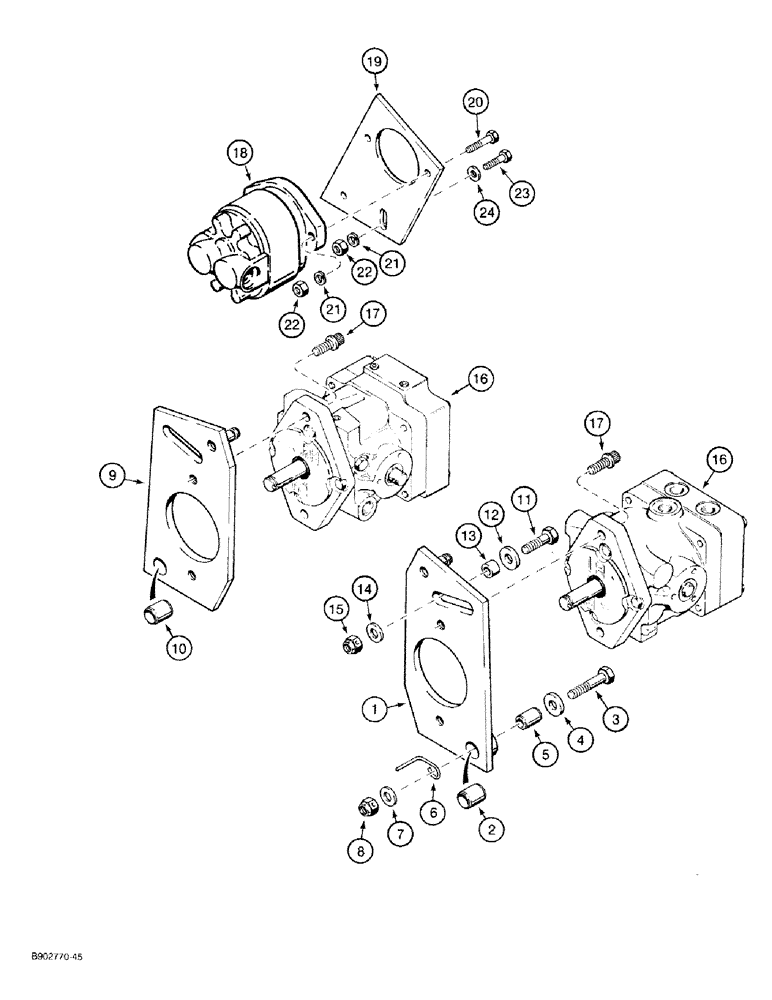

Запчасти Case 1818 (6-02) - PUMP MOUNTING (06) - POWER TRAIN

1

D122390

PLATE

variable displacement pump mounting, right hand, Includes: Ref. 2

1шт.

2

D78700

BUSHING

mounting plate

1шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

2шт.

4

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

special, hardened

2шт.

5

D78701

BUSHING

SPACER plate, lower

2шт.

6

D122463

SUPPORT

GUIDE belt

2шт.

7

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

8

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

9

D122389

PLATE

variable displacement pump mounting, left hand, Includes: Ref. 10

1шт.

10

D78700

BUSHING

mounting plate

1шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

flat, 17/32 x 1-1/4 x 5/32 inch

2шт.

13

H437263

SPACER

plate, upper

2шт.

14

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

15

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

16

D75993

PUMP

ASSEMBLY variable displacement, see Figure 6-4, diesel models only

2шт.

16

D136764

PUMP

ASSEMBLY variable displacement, see Figure 6-8, gasoline models only

2шт.

16

87297996

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

2шт.

16

87297997

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

2шт.

17

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT 12 point, 1/2 NC x 1 inch, grade 8

4шт.

18

D134544

PUMP

ASSEMBLY hydraulic equipment, see Figure 8-2, diesel models only

1шт.

18

D136386

PUMP

ASSEMBLY hydraulic equipment, see Figure 8-4, gasoline models only

1шт.

19

H438270

SUPPORT

PLATE hydraulic equipment pump mounting

1шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

425-106

NUT,3/8"-16, Cl 5

4шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.
