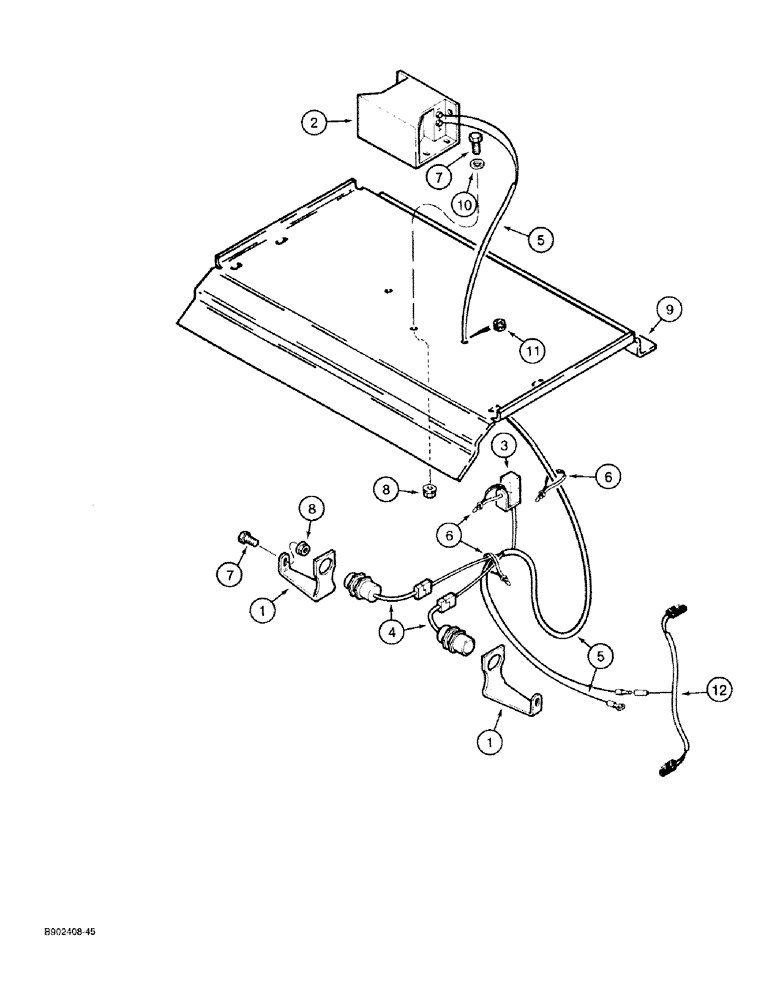

Запчасти Case 1818 (4-30) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

E20400

SUPPORT

BRACKET switch mounting, was P/N H435139

2шт.

2

D121972

ALARM

backup

1шт.

FOR NEW STYLE ALARM USE 283178A3. CAN BE SEEN IN 85XT, 90XT, AND 95XT BOOKS

1шт.

3

D128310

RELAY

SWITCH relay, Replaces: P/N 1983394C1

1шт.

P/N D128310 relay is marked 40 amp on the relay, this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

4

D136898

SWITCH

proximity

2шт.

5

H438140

HARNESS

backup alarm

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

4шт.

9

H437299

HOOD ASSY.

COVER battery

1шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

11

49566

GROMMET

battery cover

1шт.

12

H438141

HARNESS

backup alarm power

1шт.
