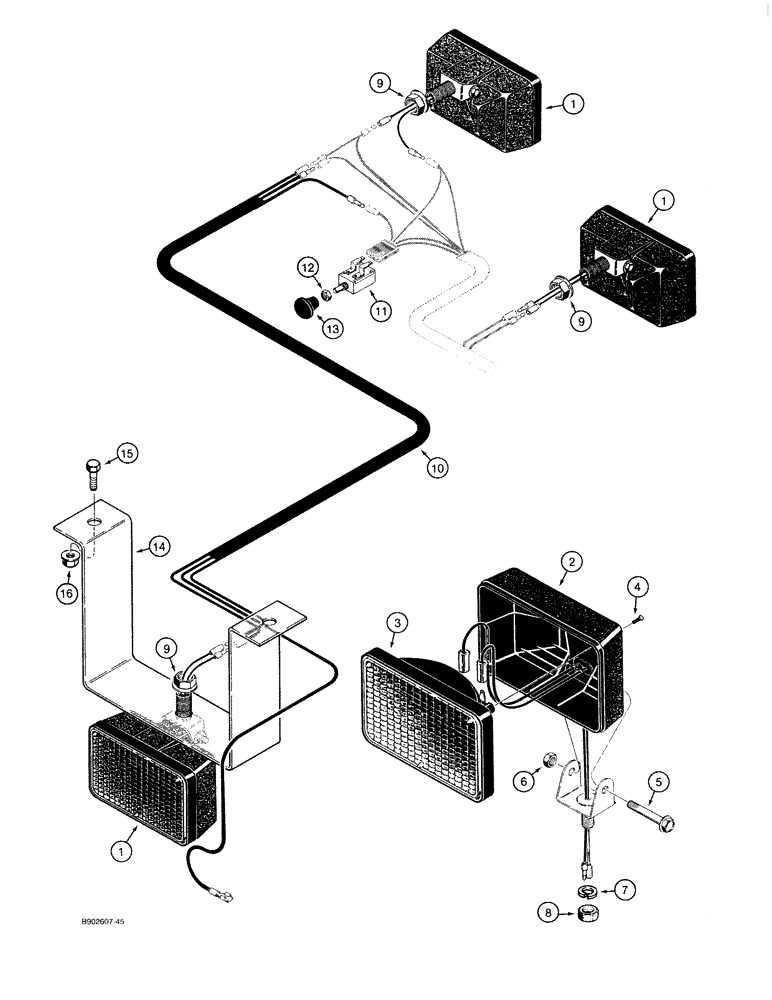

Запчасти Case 1818 (4-26) - WORK LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

H672846

INTERIOR LIGHT

LAMP ASSEMBLY, flood, Includes: Ref. 2-8

3шт.

2

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

3

N14646

INTERIOR LIGHT

LAMP sealed beam

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW pan head, self tapping, No. 8 x 1/2 inch

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

10

D134075

HARNESS

lamp

1шт.

11

D74330

SWITCH

lamp, Includes: Ref. 12

1шт.

12

N7557

NUT

hex, special, 3/8 inch NF

1шт.

13

108314A1

BUTTON

KNOB lamp switch, was P/N D95781

1шт.

14

H437298

BRACKET

mounting, rear lamp

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

2шт.
