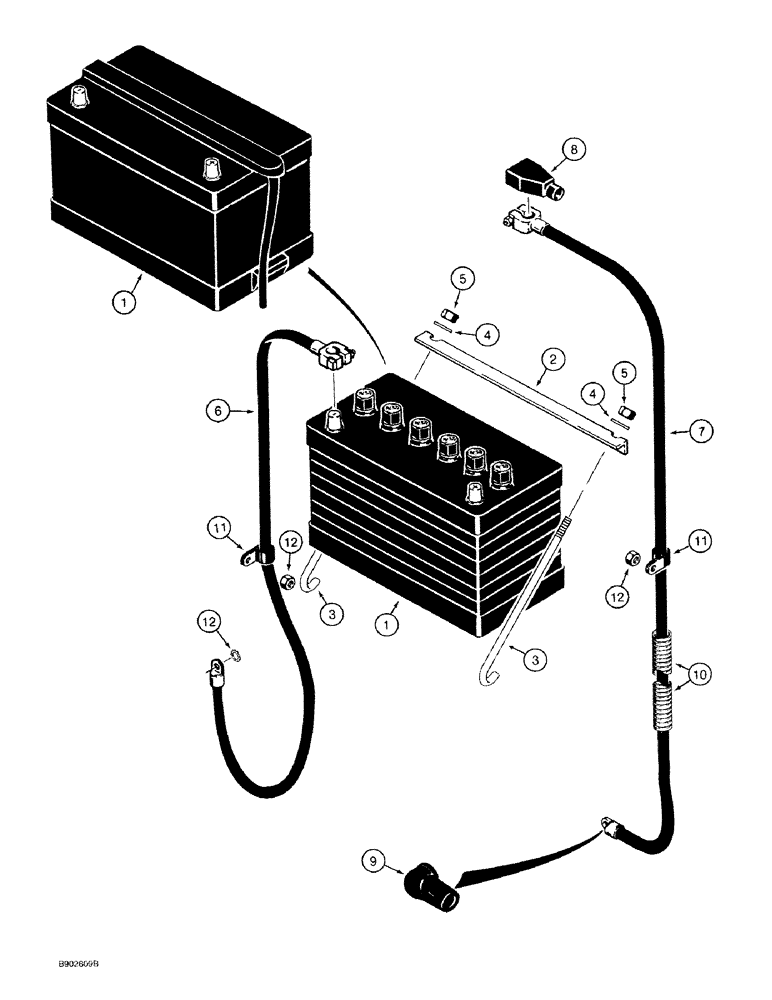

Запчасти Case 1818 (4-24) - BATTERY AND CABLES, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

120210A1

BATTERY

wet, 12 volt, was P/N B2450

1шт.

2

D59706

ANGLE

battery hold down

1шт.

3

H436311

BOLT

J-type, Replaces: P/N H438508

2шт.

4

495-21044

WASHER,3/8"

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self locking, 3/8 inch NC

2шт.

6

D61081

CABLE

battery, negative

1шт.

7

D136982

CABLE

battery, positive, Includes: Ref. 8

1шт.

8

383619R1

COVER

BOOT battery cable, positive, was P/N A27072

1шт.

9

D128016

BOOT

positive battery cable, starter end

1шт.

10

R40777

CONDUIT

positive battery cable, cut from P/N R44806 bulk conduit, 8 inch, 203 mm long, see below

1шт.

See Figure 9-2 for battery mounting box.

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

12

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

R44806

LOOM

CONDUIT bulk, 88-1/2 inch, 2248 mm long

1шт.

See Figure 9-2 for battery mounting box.

1шт.
