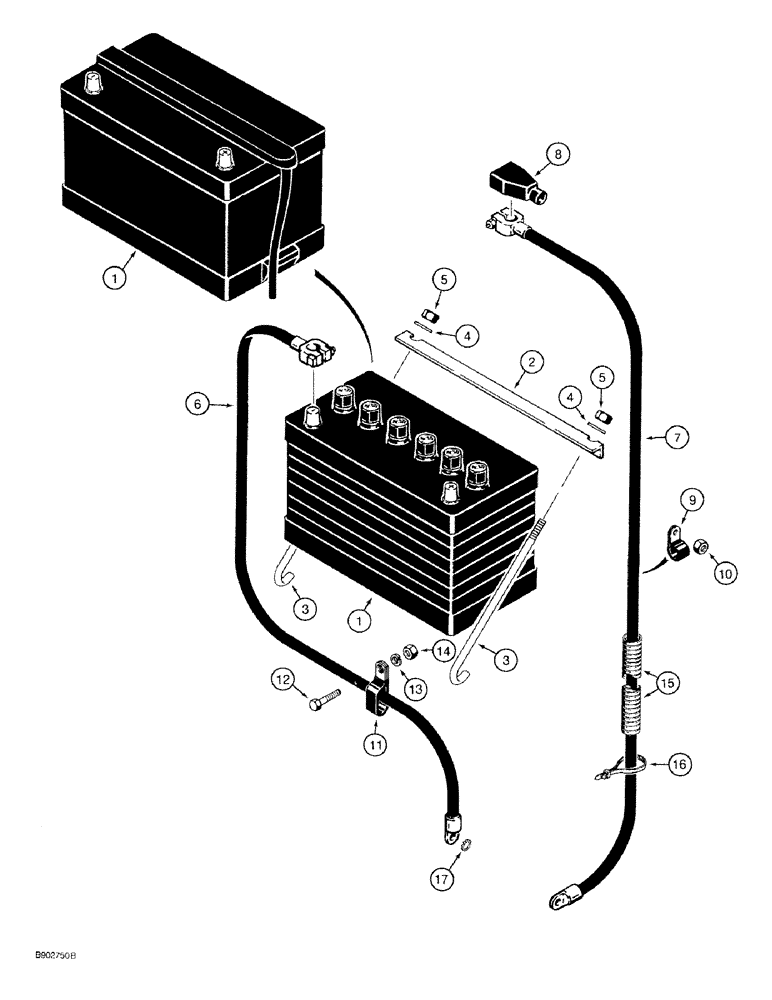

Запчасти Case 1818 (4-22) - BATTERY AND CABLES, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1

120210A1

BATTERY

wet, 12 volt, was P/N B2472

1шт.

2

D59706

ANGLE

battery hold down

1шт.

3

H436311

BOLT

J-type, replaces P/N H438508

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self locking, 3/8 inch NC

2шт.

6

D136984

CABLE

battery, negative

1шт.

7

D136982

CABLE

battery, positive, Includes: Ref. 8

1шт.

8

383619R1

COVER

BOOT positive battery cable, was P/N A27072

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

postive battery cable

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

D47783

CLAMP

negative battery cable

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

15

R40777

CONDUIT

postive battery cable, cut from P/N R44806 bulk conduit, 8 inch, 203 mm long, see below

1шт.

See Figure 9-2 for battery mounting box.

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

17

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

R44806

LOOM

CONDUIT bulk, 88-1/2 inch, 2248 mm long

1шт.

See Figure 9-2 for battery mounting box.

1шт.
