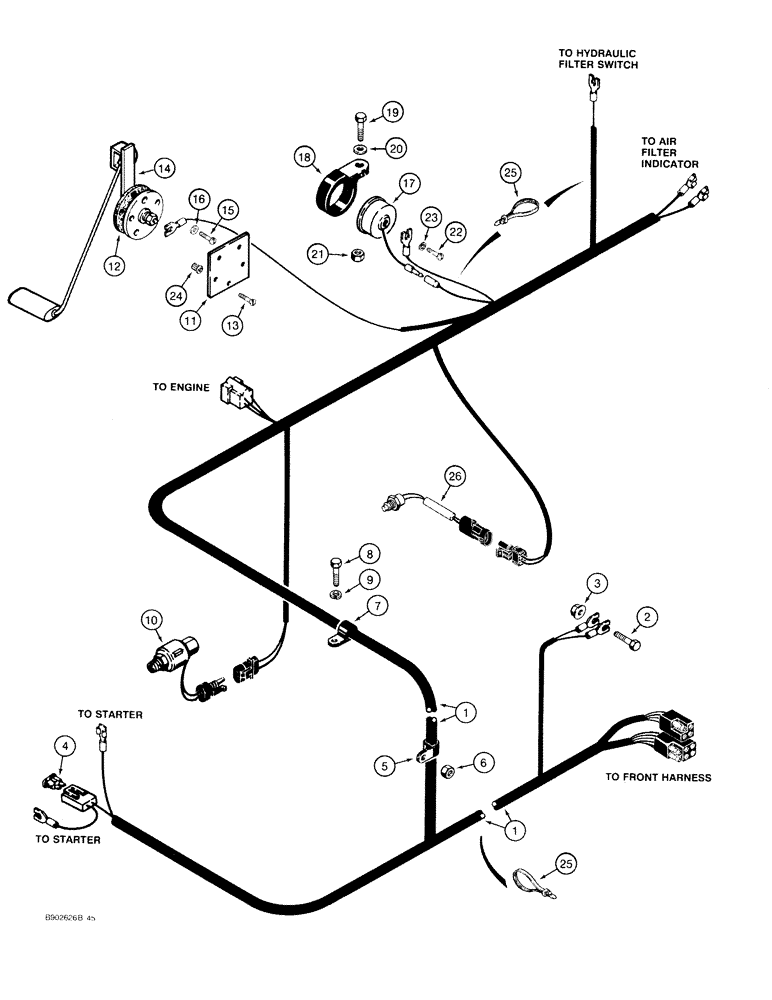

Запчасти Case 1818 (4-20) - REAR HARNESS, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

H438904

HARNESS

rear, Replaces: P/N D136754

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

1шт.

4

A149804

FUSE

30 ampere

1шт.

5

49838

CLAMP

harness, closed, 12.7 mm ID

1шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

7

49838

CLAMP

harness, closed, 12.7 mm ID

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

D139832

SOLENOID

fuel shutoff

1шт.

11

NLS

NO LONGER SERVICED

cover, sending unit, if used

1шт.

12

104812C3

GASKET,3.05mm Thk

fuel sender, was P/N A11822

1шт.

13

H435859

SCREW,#10 - 32 x 3/4"

special

5шт.

14

D122404

SENDER UNIT

SENDER fuel gauge, if used

1шт.

15

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

machine, pan head Phillips, No. 10 NF x 3/4 inch

1шт.

16

D83885

WASHER

special, copper

1шт.

17

D126995

BUZZER

ALARM oil pressure

1шт.

18

D120561

CLAMP

P-type, oil pressure alarm

1шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

20

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

22

470-1083

SCREW,Slotted Pan Hd, #8-32 x 3/16"

machine, pan head slotted, No. 8 NC x 3/8 inch

1шт.

23

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

24

H435860

INSERT

threaded, fuel gauge sender mounting

5шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

26

1964861C1

SWITCH

engine oil temperature

1шт.
