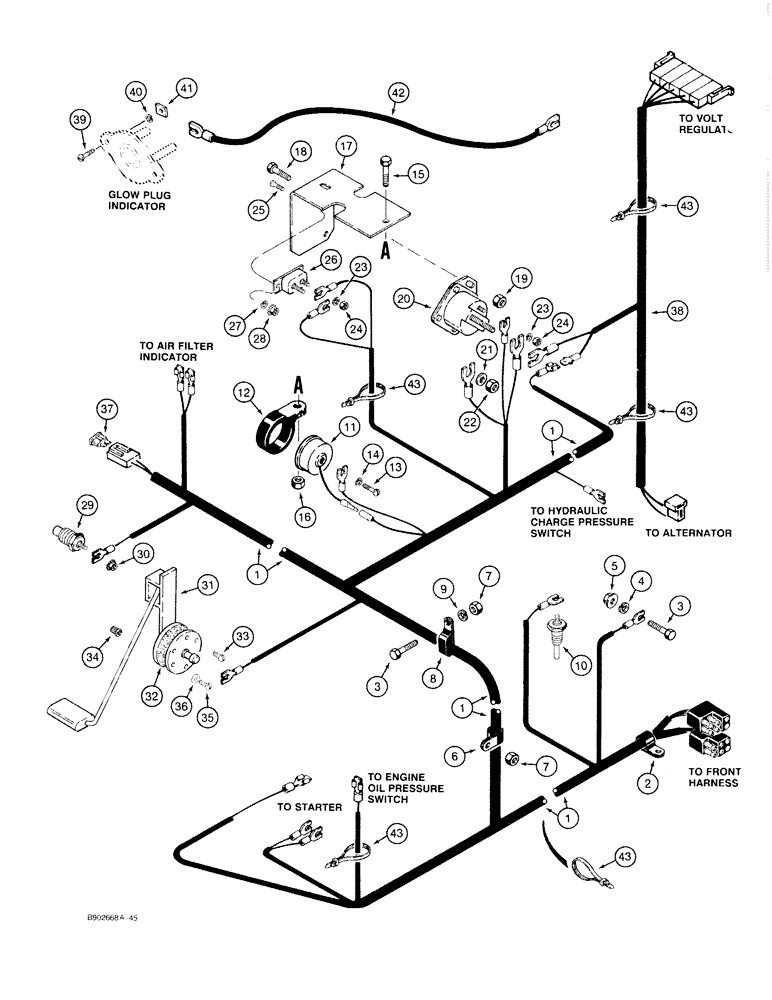

Запчасти Case 1818 (4-18) - REAR HARNESS, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1

H438903

HARNESS

rear, Replaces: P/N D136028

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, 3/4 inch diameter

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

1шт.

6

49838

CLAMP

harness, closed, 12.7 mm ID

3шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

8

D47783

CLAMP

harness

1шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

H439301

SWITCH

hydraulic oil temperature, Replaces: P/N D132280

1шт.

11

D126995

BUZZER

ALARM oil pressure

1шт.

12

D120561

CLAMP

P-type, oil pressure alarm

1шт.

13

470-1083

SCREW,Slotted Pan Hd, #8-32 x 3/16"

machine, pan head slotted, No. 8 NC x 3/16 inch

1шт.

14

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

D139859

MOUNTING PARTS

BRACKET mounting, glow plug relay and circuit breaker

1шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

20

A39079

SOLENOID

RELAY glow plug

1шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

23

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

24

225-14210

NUT,#10-32

2шт.

25

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

26

A22877

BREAKER,40A

circuit, 40 amperes

1шт.

27

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

28

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, with external tooth lock washer, No. 8 NC

2шт.

29

1983238C1

SENSOR,1/2" - 14

SENDER water temperature, was P/N A154283, Includes: Ref. 30

1шт.

30

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

31

D122404

SENDER UNIT

SENDER fuel gauge

1шт.

32

104812C3

GASKET,3.05mm Thk

fuel sender, was A11822

1шт.

33

H435859

SCREW,#10 - 32 x 3/4"

special

4шт.

34

H435860

INSERT

threaded, fuel gauge sender mounting

5шт.

35

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

machine, pan head Phillips, No. 10 NF x 3/4 inch

1шт.

36

D83885

WASHER

special, copper

1шт.

37

A149804

FUSE

30 ampere

1шт.

38

D139701

HARNESS

voltage, Serial Range: regulator-alternator

1шт.

39

182-573

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan head Phillips, No. 10 NC x 1/2 inch

2шт.

40

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

41

129-57

NUT

square, No. 10 NC

2шт.

42

H437480

ELECTRICAL WIRE

WIRE feed, glow plug

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.
