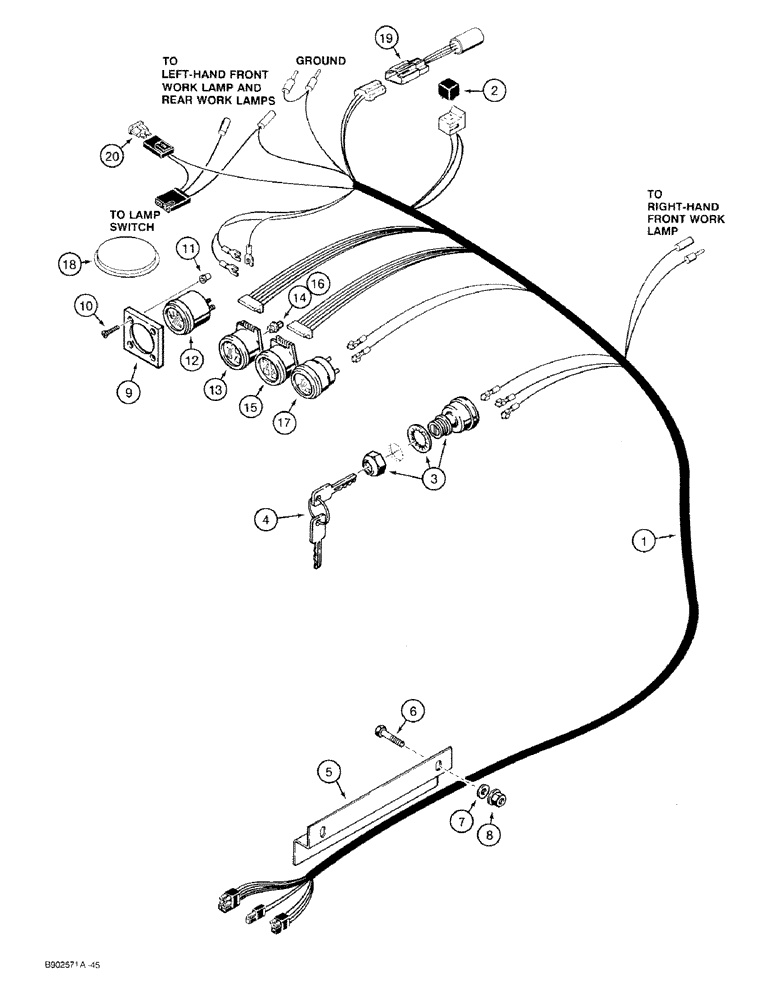

Запчасти Case 1818 (4-14) - FRONT HARNESS AND GAUGES, DIESEL MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

D136027

HARNESS

front

1шт.

2

1983394C1

RELAY

electrical, sealed, Replaces: P/N D128310

1шт.

3

3107556R92

SWITCH ASSY

SWITCH ignition, includes two keys and mounting hardware, was P/N K203992, Includes: Ref. 4

1шт.

4

K962338

KEY

KEY ignition switch, set of two

1шт.

5

D136931

ANGLE

COVER front harness

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

2шт.

9

D121637

COVER

warning lamps and gauges

4шт.

10

142-108

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

machine, oval head Phillips, No. 6 NC x 7/8 inch

16шт.

11

D121600

ISOLATOR

cover mounting screw

16шт.

12

D121645

FUEL GAUGE

GAUGE fuel

1шт.

13

D136661

BRACKET

GAUGE warning lamp, hydraulic and air filter, engine oil pressure and voltage indicator, Includes: Ref. 14

1шт.

14

N8320

BULB

gauge

1шт.

15

D136662

BRACKET

GAUGE warning lamp, engine and hydraulic oil temperature and glow plug, Includes: Ref. 16

1шт.

16

N8320

BULB

gauge

1шт.

17

H437689

HOURMETER

engine, was P/N D121644

1шт.

18

D93716

PLUG,73.mm ID x 88.9mm OD

plastic, ROPS, 3 inch, 76 mm diameter

2шт.

19

D137049

ELECTRICAL GAUGE

INDICATOR voltage

1шт.

20

A149802

FUSE

20 amp

1шт.
