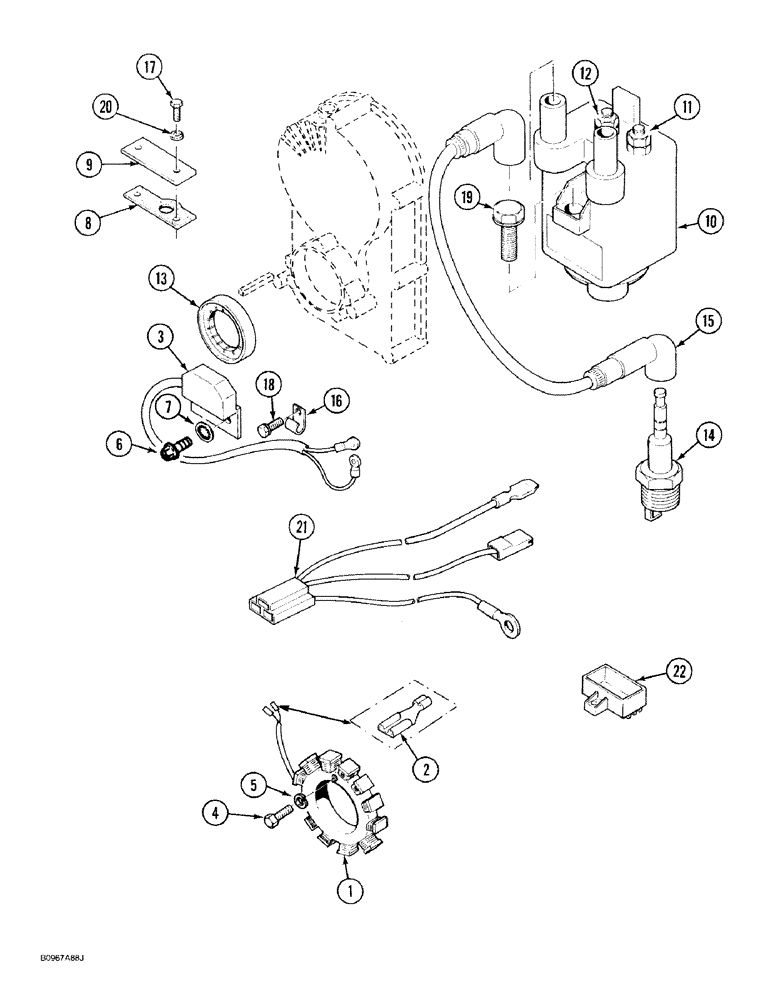

Запчасти Case 1818 (4-08) - IGNITION SYSTEM, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

N7428

STATOR

ignition

1шт.

2

1959056C1

TERMINAL CONNECTOR,16 - 14

TERMINAL stator leads

2шт.

3

1959057C1

INDICATOR

CONTROL ignition

1шт.

4

163-37

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1", Gr 5

machine, hex head, self locking, No. 10 NF x 1 inch

3шт.

5

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

6

1959058C1

CAPTIVE WASHER SCREW

SCREW hex washer head, special

2шт.

7

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

2шт.

8

N9607

GASKET

breaker box

1шт.

9

1959059C1

PLATE

ignition plunger cover

1шт.

10

1959060C1

COIL

battery ignition, Includes: Ref. 11-12

1шт.

11

1959061C1

NUT

hex flange, positive terminal, 4 mm

1шт.

12

1959062C1

NUT

hex flange, negative terminal, 5 mm

1шт.

13

1959063C1

ROTOR

ignition

1шт.

14

RS14YC

PLUG

spark

2шт.

15

1959064C1

CABLE

spark plug, 9 inch long, if used

1шт.

15

1959065C1

CABLE

spark plug, 18 inch long, if used

1шт.

16

1959066C1

CLIP

CLAMP wire

2шт.

17

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

2шт.

18

1959067C1

CAPTIVE WASHER SCREW

SCREW hex washer head, special

1шт.

19

1959068C1

CAPSCREW,Hex, 1/4" - 20 x 1"

SCREW hex washer head, special

2шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

1959069C1

HARNESS

wiring, interface

1шт.

22

N7431

REGULATOR

voltage, electrical

1шт.

23

H438271

CAPACITOR

CONDENSER ignition, attaches to the positive terminal of the coil, not shown

1шт.
