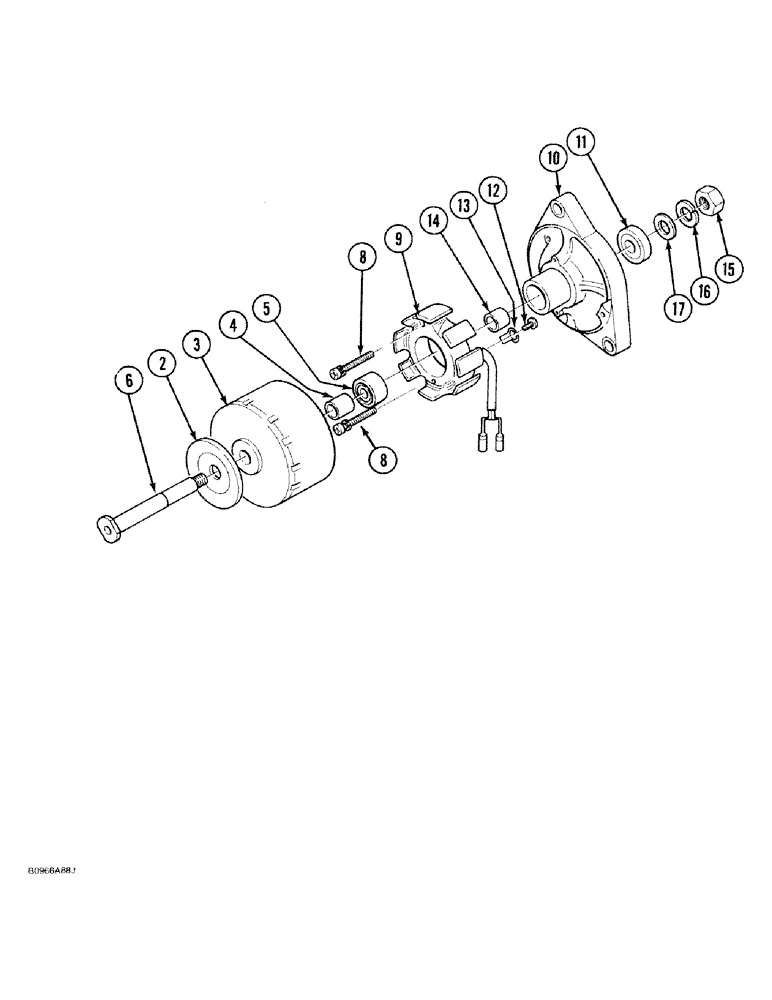

Запчасти Case 1818 (4-04) - ALTERNATOR, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1959644C1

ALTERNATOR

ALTERNATOR ASSEMBLY engine, 25 amp, , Includes: P/N 1959584C1 and 1959585C1, Ref. 14-17, see Figure 4-2 for mounting parts

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 124V, 65 Amp

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

1959584C1

ROTOR ASSY.

ROTOR ASSEMBLY alternator, Includes: Ref. 2-6

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY rotor

1шт.

3

NSS

NOT SOLD SEPARAT

ROTOR alternator

1шт.

4

NSS

NOT SOLD SEPARAT

COLLAR rotor

1шт.

5

1959645C1

BEARING ASSY

BEARING ball, rotor, was P/N 1959586C1

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT rotor, fan

1шт.

1959585C1

STATOR

STATOR ASSEMBLY alternator, Includes: Ref. 8-13

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW round head, special

2шт.

9

NSS

NOT SOLD SEPARAT

STATOR alternator

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE stator

1шт.

11

1959645C1

BEARING ASSY

BEARING ball, plate, P/N 1959586C1

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW round head, special

1шт.

13

NSS

NOT SOLD SEPARAT

CLAMP wire

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR stator

1шт.

15

NSS

NOT SOLD SEPARAT

NUT shaft

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER lock, shaft

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER flat, shaft

1шт.

18

1959634C1

REGULATOR

REGULATOR voltage, not shown

1шт.
