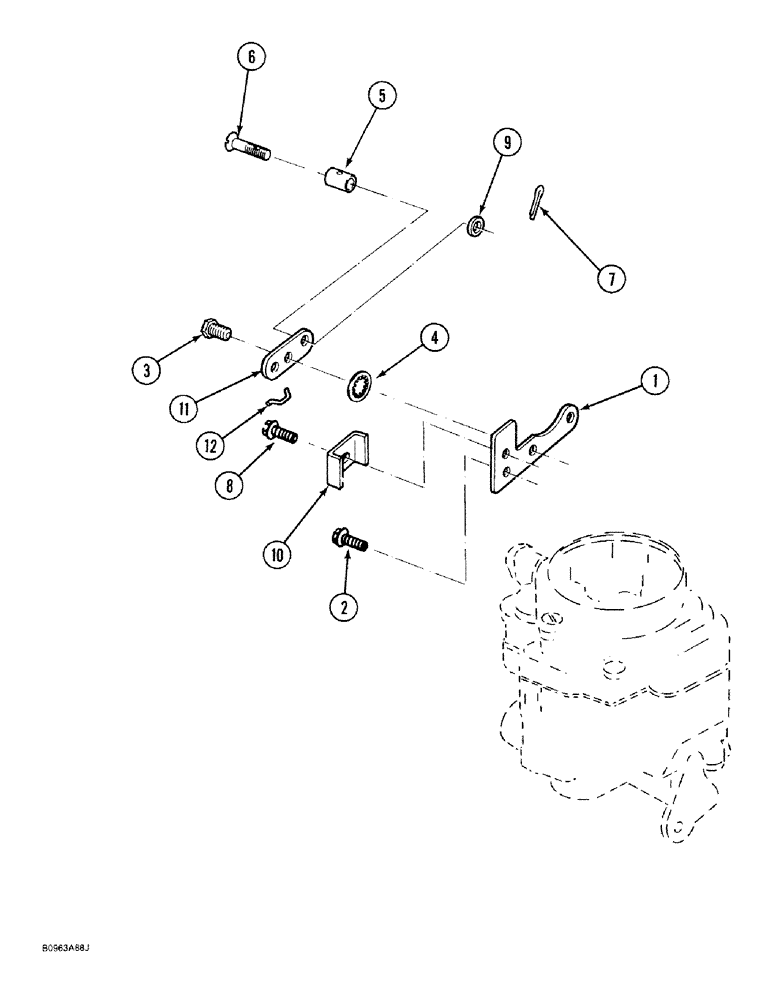

Запчасти Case 1818 (3-26) - CHOKE CONTROL, GASOLINE MODELS (03) - FUEL SYSTEM

1

1959084C1

LEVER

BRACKET choke cable

1шт.

2

1959085C1

SCREW

hex washer head, No. 10, locking

1шт.

3

1959086C1

SPECIAL BOLT,#10 - 32 x 3/8"

SCREW No. 10, special

1шт.

P/N 232809A1 Shoulder screw released for use on the 1998814C2 Engine, Shoulder screw is #10 -32 X .38"

1шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

74248C1

BUSHING

SWIVEL choke lever

1шт.

6

169-131

BOLT,Fil Hd, 8" - 32 x 5/16"

SCREW machine, Fillister head, No. 8 NC x 5/16 inch

1шт.

7

74246C1

LINCH PIN

PIN cotter

1шт.

8

1959078C1

CAPTIVE WASHER SCREW

SCREW washer head, slotted, No. 10

2шт.

9

1959087C1

WASHER

7/32 x 3/8 inch x 18 gauge

1шт.

10

N7433

CLAMP

choke cable

1шт.

11

1959083C1

LEVER

choke

1шт.

12

77108C1

SPLIT PIN/SAFETY PIN

LINK choke cable

1шт.
