(3-22) - FUEL PUMP, GASOLINE MODELS

Запчасти Case 1818 (3-22) - FUEL PUMP, GASOLINE MODELS (03) - FUEL SYSTEM

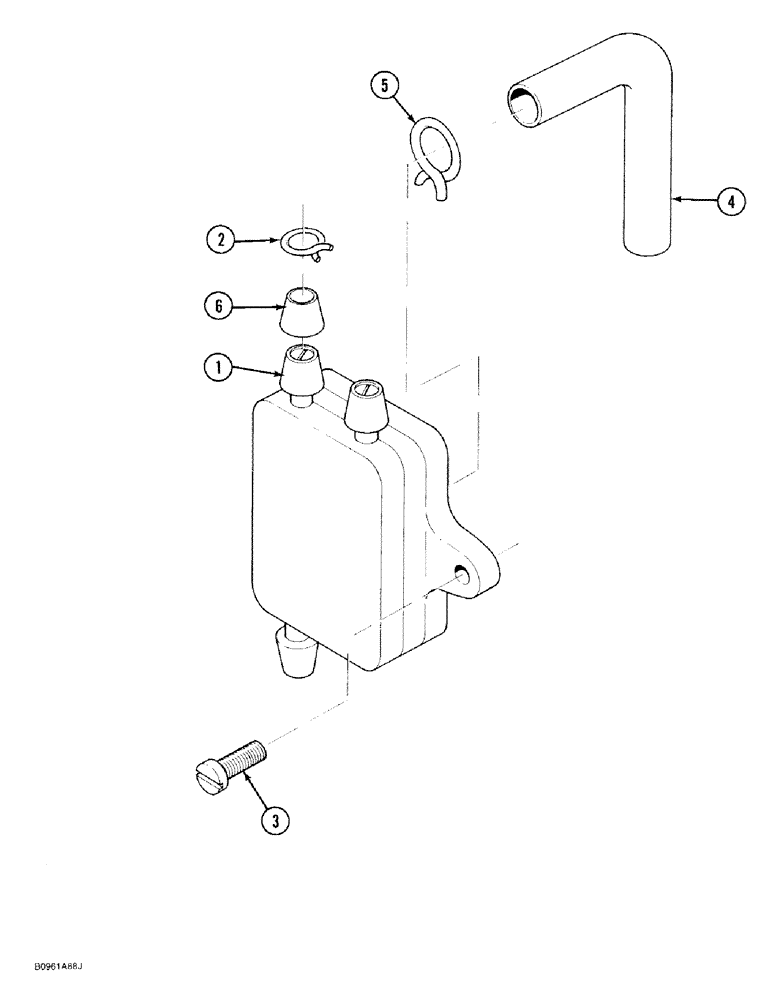

Схема запчастей Case 1818 - (3-22) - FUEL PUMP, GASOLINE MODELS (03) - FUEL SYSTEM
1
6
3
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1959095C1

FEED PUMP

PUMP fuel, vacuum pulse kit, Includes: Ref. 2

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP spring type, 7/16 inch

1шт.

3

1959097C1

SCREW

pan head slotted, special

2шт.

4

232802A1

HOSE

fuel, Replaces P/N 1959081C1

1шт.

Used on the 1998814C2 Engine

1шт.

5

1959079C1

CLAMP

hose, 1/2 inch

2шт.

6

1959054C1

CAP

fuel filling

1шт.
