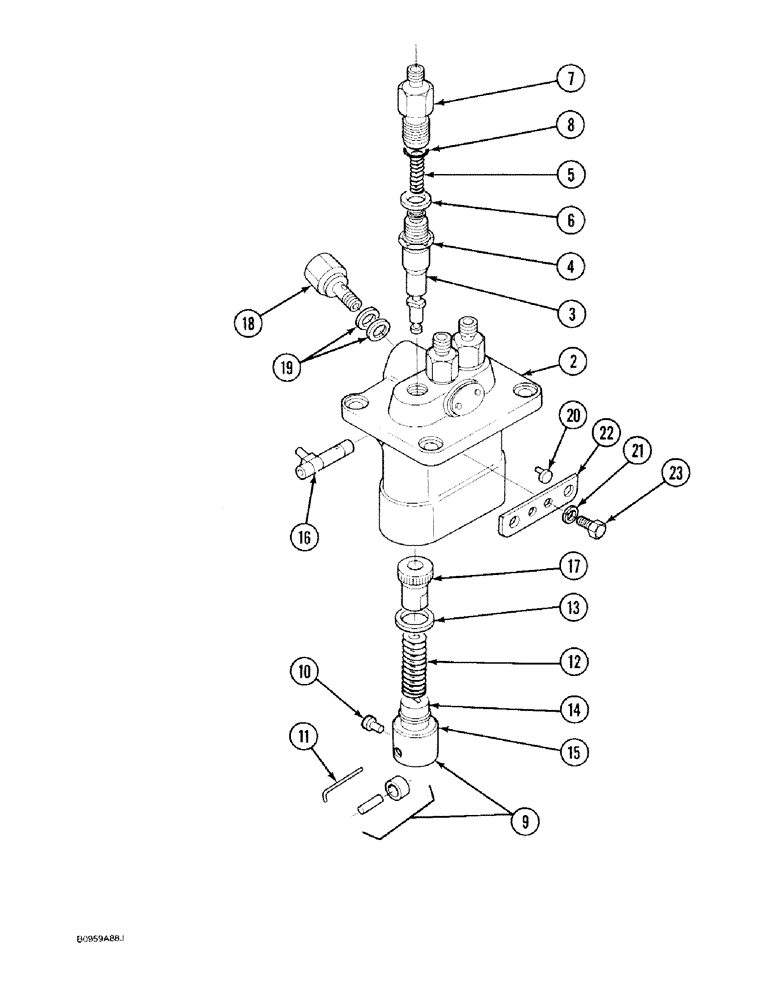

Запчасти Case 1818 (3-18) - FUEL INJECTION PUMP, DIESEL MODELS (03) - FUEL SYSTEM

1959448C1

PUMP

ASSEMBLY injection, Includes: Ref. 2-23

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING injection pump, order P/N 1959448C1 pump assembly

1шт.

3

1959529C1

PLUNGER ASSY.

ELEMENT pump

3шт.

4

1959530C1

VALVE

delivery

3шт.

5

1959531C1

SPRING

delivery valve

3шт.

6

1959532C1

GASKET

SEAL delivery valve

3шт.

7

1959533C1

HOLDER

NUT cap, delivery valve

3шт.

8

1959534C1

O-RING

delivery valve nut

3шт.

9

1959535C1

TAPPET

components not serviced seperately

3шт.

10

1959536C1

PIN

plunger guide

3шт.

11

1959537C1

PIN

retaining

1шт.

12

1959538C1

SPRING

plunger

3шт.

13

1959539C1

SEAT

spring, upper

3шт.

14

1959540C1

SEAT

spring, lower

3шт.

15

1959541C1

SHIM

plunger

1шт.

16

1959542C1

RACK

ROD control

1шт.

17

1959543C1

SLEEVE

control

3шт.

18

1959544C1

SCREW

adjusting

1шт.

19

1959545C1

GASKET

adjusting screw

2шт.

20

1959546C1

COLLAR

STOP adjusting plate

2шт.

21

1959547C1

SPRING WASHER

lock

2шт.

22

1959548C1

PLATE

adjusting

1шт.

23

1959549C1

BOLT

adjusting plate

2шт.
