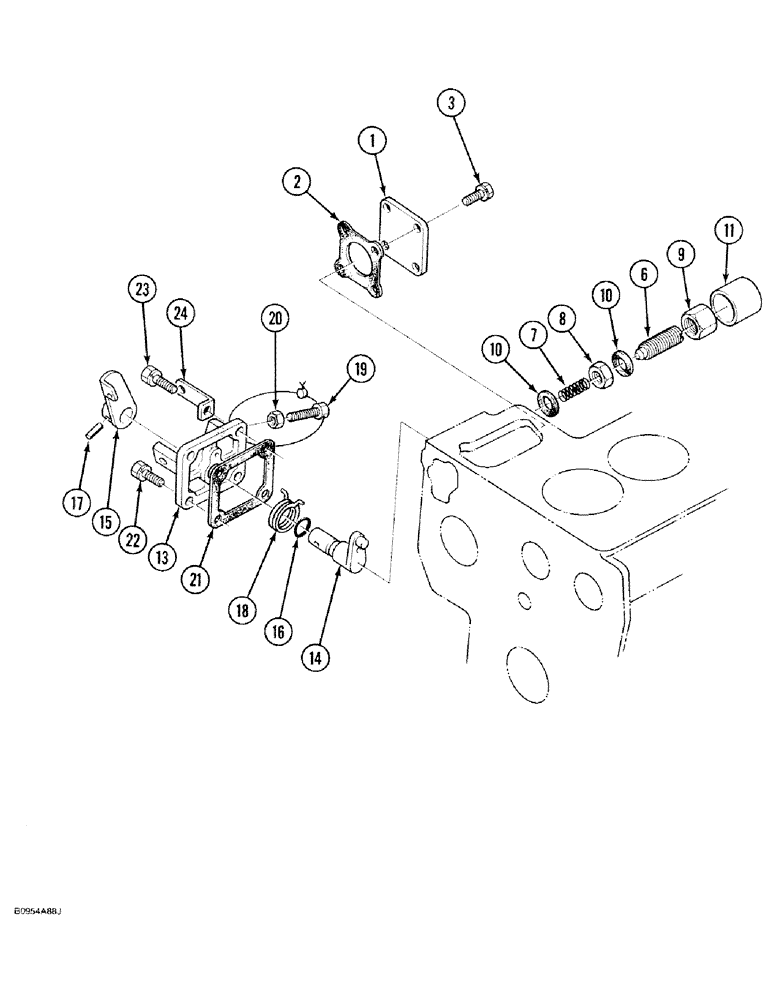

Запчасти Case 1818 (3-08) - IDLER AND ENGINE STOP LEVER, DIESEL MODELS (03) - FUEL SYSTEM

1

1959320C1

PLATE

COVER oil pump

1шт.

2

1981631C1

GASKET

oil pump cover

1шт.

3

1959322C1

BOLT

oil pump cover

4шт.

1959323C1

ADJUSTER

KIT idler, Includes: P/N 1959324C1 and Ref. 6-11

1шт.

1959324C1

BOLT,Adj

SCREW ASSEMBLY adjusting, Includes: Ref. 6-7

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW adjusting, order P/N 1959324C1 screw assembly

1шт.

7

1959326C1

SPRING

screw assembly

1шт.

8

1959327C1

NUT

8 mm

1шт.

9

1959328C1

NUT

cap, 8 mm

1шт.

10

1959329C1

WASHER

GASKET adjusting screw, 8.3 x 13 x 15 mm

2шт.

11

1959330C1

CAP,M14.6 x 19mm

adjusting screw

2шт.

1959331C1

LEVER

ASSEMBLY engine stop, Includes: P/N 1959333C1 and Ref. 13 - 18

1шт.

13

1959332C1

COVER

injection pump

1шт.

1959333C1

SHAFT

ASSEMBLY lever, Includes: Ref. 14-15

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT lever

1шт.

15

1959335C1

LEVER

engine stop

1шт.

16

1959336C1

O-RING

shaft

1шт.

17

1959337C1

PIN

lever

1шт.

18

1959338C1

SPRING

return

1шт.

19

1959339C1

PIN

BOLT spring return stop, with tie wire, 6 x 30 mm

1шт.

20

1959205C1

NUT

6 mm

1шт.

21

1981639C1

GASKET

injection pump cover

1шт.

22

1959155C1

BOLT

BOLT injection pump cover

3шт.

23

1959215C1

BOLT

injection pump cover

1шт.

24

1959343C1

BRACKET

HOLDER wire

1шт.
