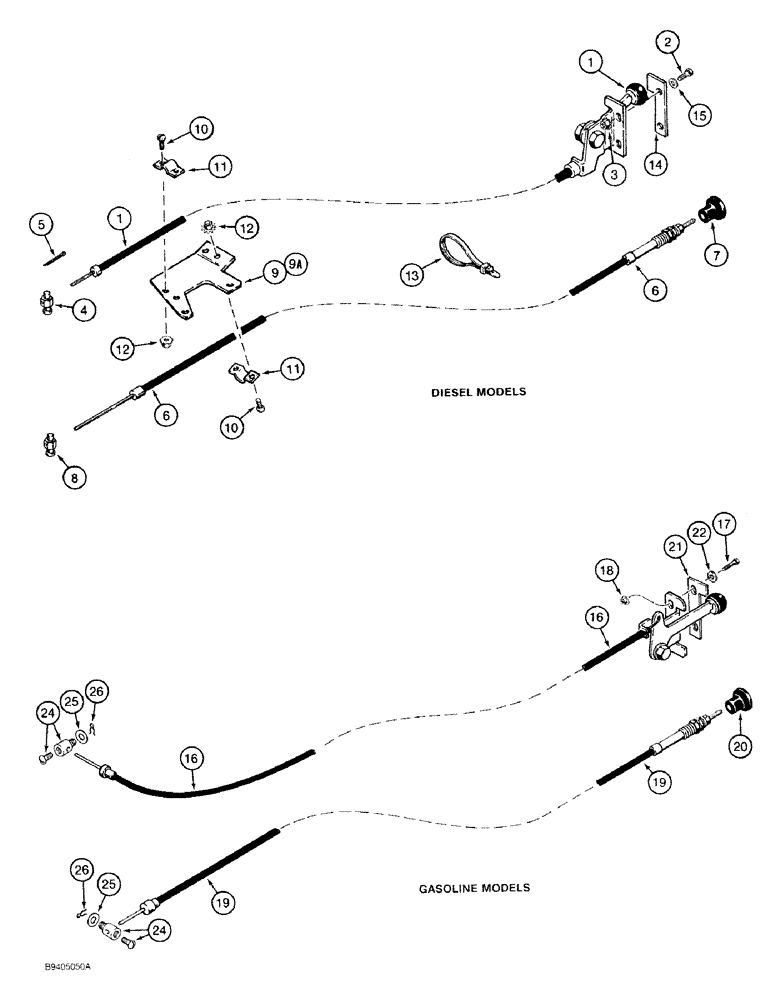

Запчасти Case 1818 (3-04) - ENGINE CONTROLS, PRIOR TO P.I.N. JAF0095713 (03) - FUEL SYSTEM

1

E20622

CABLE

throttle control, no longer available, order P/N 125091A1 cable and P/N 351100C1 clamp, diesel models

1шт.

1a

125091A1

CABLE

throttle control, diesel models

1шт.

1b

351100C1

CLAMP

throttle cable, diesel models

1шт.

2

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

machine, hex head, No. 10 NC x 5/8 inch, diesel models

2шт.

3

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, with external tooth lock washer, No. 10 NC, diesel models

2шт.

4

D92852

PIVOT

RETAINER throttle control cable, diesel models

1шт.

5

T41928

CLAMP,3/16", Insul, 1/4" Bolt

PIN cotter, 3/32 x 1/2 inch, diesel models

1шт.

6

104039A1

CABLE ASSY.

CABLE fuel shut off, Replaces: P/N D122111, diesel models

1шт.

7

D91273

KNOB

fuel shut off cable, diesel models

1шт.

8

L32208

CLAMP

RETAINER fuel shut off cable, diesel models

1шт.

9

D122051

PLATE

cable, no longer available, order P/N 125089A1 plate, diesel models

1шт.

9a

125089A1

LARGE PLATE

PLATE cable, diesel models

1шт.

10

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch, diesel models

4шт.

11

D81500

CLAMP

cables to plate, diesel models

2шт.

12

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, with external tooth lock washer, No. 10 NC, diesel models

4шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch, diesel models

1шт.

14

H438528

BRACKET

throttle cable, diesel models

1шт.

15

495-31022

WASHER,#10

Diesel models #10

2шт.

16

E20656

CABLE

throttle control, no longer available, order P/N 128701A1 Throttle Kit, gasoline models

1шт.

17

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

machine, hex, plated, No. 10 NC x 5/8 inch, gasoline models

2шт.

18

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, with external tooth lock washer, No. 10 NC, gasoline models

2шт.

19

104040A1

CABLE

choke control, Replaces: P/N D122689, gasoline models

1шт.

20

D91274

KNOB

choke control cable, gasoline models

1шт.

21

H438528

BRACKET

throttle cable, gasoline models

1шт.

22

495-31022

WASHER,#10

Gasoline models #10

2шт.

128701A1

SET

KIT throttle, Includes: Ref. 23-28, gasoline models

1шт.

23

143047A1

ARM

control, gasoline models

1шт.

24

128703A1

BALL JOINT

SWIVEL cable, gasoline models

1шт.

25

1959087C1

WASHER

special , gasoline models

1шт.

26

136-2

PIN, SPLIT (COTTER)

PIN retaining , gasoline models

1шт.

27

125091A1

CABLE

throttle, not shown, see Figure 3-5A, gasoline models

1шт.

28

127180A1

LARGE PLATE

PLATE limit, not shown, see Figure 3-5A, gasoline models

1шт.
