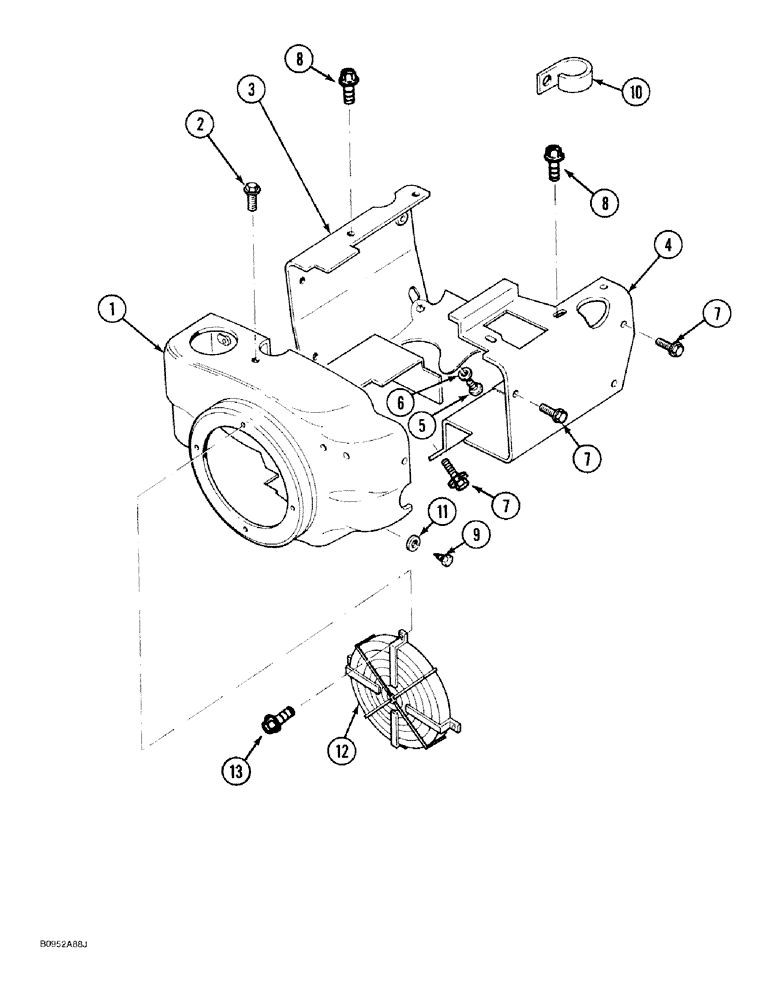

Запчасти Case 1818 (2-60) - BLOWER HOUSING, GASOLINE MODELS (02) - ENGINE

1

1959088C1

HOUSING

blower, do not have a cap that fits into the hole on this housing

1шт.

2

74261C1

SCREW,Hex, 1/4" - 20 x 0.50"

BOLT hex flange, 1/4 NC x 1/2 inch

1шт.

3

1959089C1

HOOD

HOUSING cylinder air, left hand

1шт.

4

1959090C1

HOOD

HOUSING cylinder air, right hand

1шт.

5

261-54710

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

SCREW self tapping, pan head Phillips, 1/4 NC x 5/8 inch

2шт.

6

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

2шт.

7

1959091C1

BOLT,Hex, 1/4" - 20 x 5/16"

hex flange, self locking, special, 1/4 NC x 5/16 inch

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

2шт.

9

261-54710

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

SCREW self tapping, pan head Phillips, 1/4 NC x 5/8 inch

2шт.

10

1959092C1

CLAMP

wire, alternator leads, use existing hardware

1шт.

11

495-31027

WASHER,1/4"

flat, 17/64 x 5/8 x 3/64 inch

2шт.

12

1959093C1

PROTECTOR

GUARD flywheel

1шт.

13

74263C1

BOLT,Hex Locking Washer Hd 1/4" - 20 x 3/8"

hex flange, self locking, 1/4 NC x 3/8 inch

4шт.
