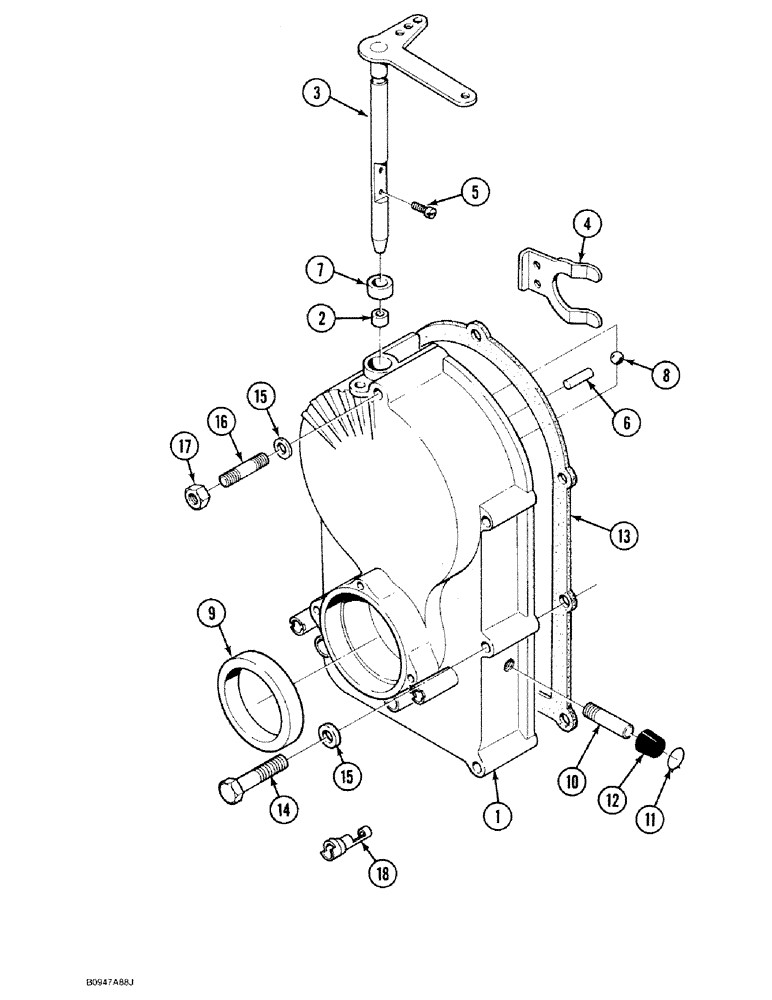

Запчасти Case 1818 (2-50) - FRONT GEAR COVER, GASOLINE MODELS (02) - ENGINE

1959051C1

HOUSING

COVER ASSEMBLY, front gear, Includes: Ref. 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

COVER front gear, order P/N 1959051C1 cover assembly

1шт.

2

N9591

BUSHING

Governor shaft

1шт.

3

N9625

SHAFT

AND ARM governor

1шт.

4

N9592

FORK

YOKE governor shaft

1шт.

5

470-1083

SCREW,Slotted Pan Hd, #8-32 x 3/16"

machine, pan head Phillips, 32 x 3/16 inch

2шт.

6

38-11214

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

7

N9594

OIL SEAL

oil, governor shaft

1шт.

8

211-204

BALL

chrome alloy steel, 3/16 inch, grade 25

1шт.

9

N9595

OIL SEAL

oil, crankshaft

1шт.

10

77037C1

PIPE,0.23" ID, 0.29" OD, 15" Length

TUBE fuel pump vacuum

1шт.

11

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP spring type, 7/16 inch

1шт.

12

1959054C1

CAP

vacuum port

1шт.

13

1959117C1

GASKET

cover, Replaces: P/N N9596

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

hex, 5/16 NC x 1-3/4 inch

4шт.

15

115308

WASHER,.344" x 11/16" x .065"

copper, 21/64 x 9/16 x 1/16 inch, was P/N N9602

5шт.

16

1959055C1

STUD

gear cover

1шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

18

N7413

HOLDER

CLIP retaining, control rod to governor shaft

1шт.
