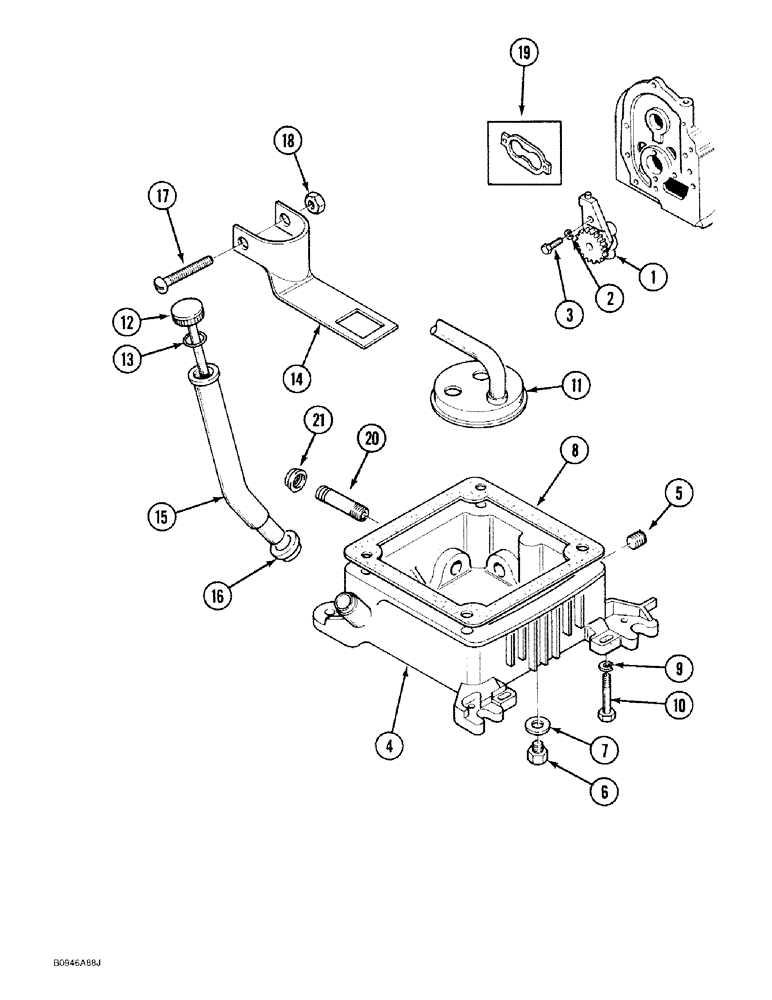

Запчасти Case 1818 (2-48) - OIL PUMP AND PAN, GASOLINE MODELS (02) - ENGINE

1

N9600

PUMP, ENGINE OIL

PUMP engine oil

1шт.

2

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

2шт.

1959038C1

PAN, ENGINE OIL

PAN ASSEMBLY oil, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

PAN oil, order P/N 1959038C1 pan assembly

1шт.

5

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG square, 3/8 inch PT, Includes: Ref. 6-7

1шт.

6

1959040C1

PLUG

oil drain

1шт.

7

1959041C1

GASKET

GASKET oil drain plug

1шт.

8

1959115C1

GASKET

oil pan, Replaces: P/N N9597

1шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex, 3/8 NC x 3-3/4 inch

4шт.

11

N9627

STRAINER ASSY.

TUBE oil suction

1шт.

12

1959042C1

DIPSTICK

oil, Includes: Ref. 13

1шт.

13

N7422

O-RING,1" ID x 1-1/4" OD x 1/8"

dipstick

1шт.

14

1959043C1

BRACKET

fill tube

1шт.

15

1959044C1

TUBE

oil fill

1шт.

16

1959045C1

OIL SEAL

oil fill tube

1шт.

17

1959046C1

SCREW

pan head, slotted, 1/4 inch

1шт.

18

1959047C1

NUT

hex, special

1шт.

19

N9601

GASKET

GASKET engine oil pump

1шт.

20

221-170

PIPE,Nipple, 3/8" NPT x 5"

NIPPLE straight, 1/8 PT x 7-1/2 inch

1шт.

21

221-524

CAP,3/8" NPT

pipe, 3/8 inch

1шт.
