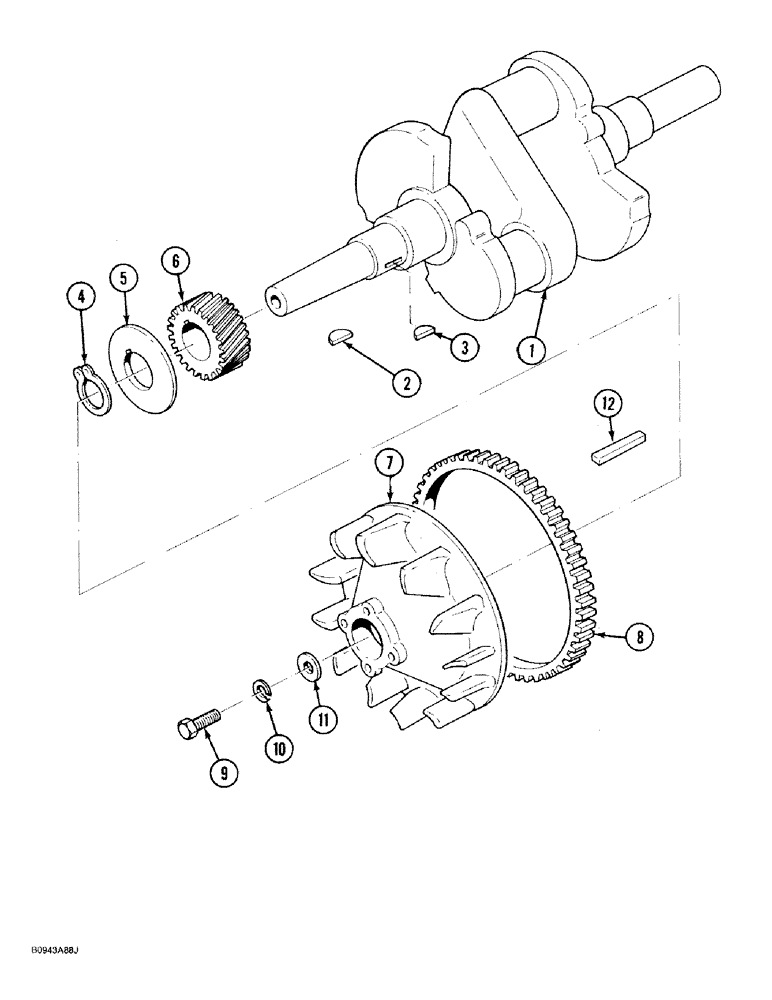

Запчасти Case 1818 (2-42) - CRANKSHAFT, FLYWHEEL AND GEAR, GASOLINE MODELS (02) - ENGINE

1

1959027C1

CRANKSHAFT

ASSEMBLY engine, Includes: Ref. 2-3

1шт.

2

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

(No. 806) #91, 1/4" x 3/4"

1шт.

3

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

4

100-11150

SNAP RING,#150, Ext

Ring, Snap, , washer #150, Ext

1шт.

5

N9549

DISC

WASHER gear retaining

1шт.

6

N9616

WHEEL GEAR

GEAR crankshaft

1шт.

1959029C1

FLYWHEEL

ASSEMBLY crankshaft, Includes: Ref. 7-8

1шт.

7

NSS

NOT SOLD SEPARAT

FLYWHEEL crankshaft, order P/N 1959029C1 flywheel assembly

1шт.

8

N9551

RING, FLYWHEEL

GEAR ring, flywheel

1шт.

9

74108C1

SCREW,Hex

BOLT hex head, flywheel

1шт.

10

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

11

N9590

WASHER

flat, flywheel retaining

1шт.

12

1959031C1

KEY

flywheel

1шт.

232799A1

KIT

KEY released for the P/N 1998814C2 engine

1шт.
