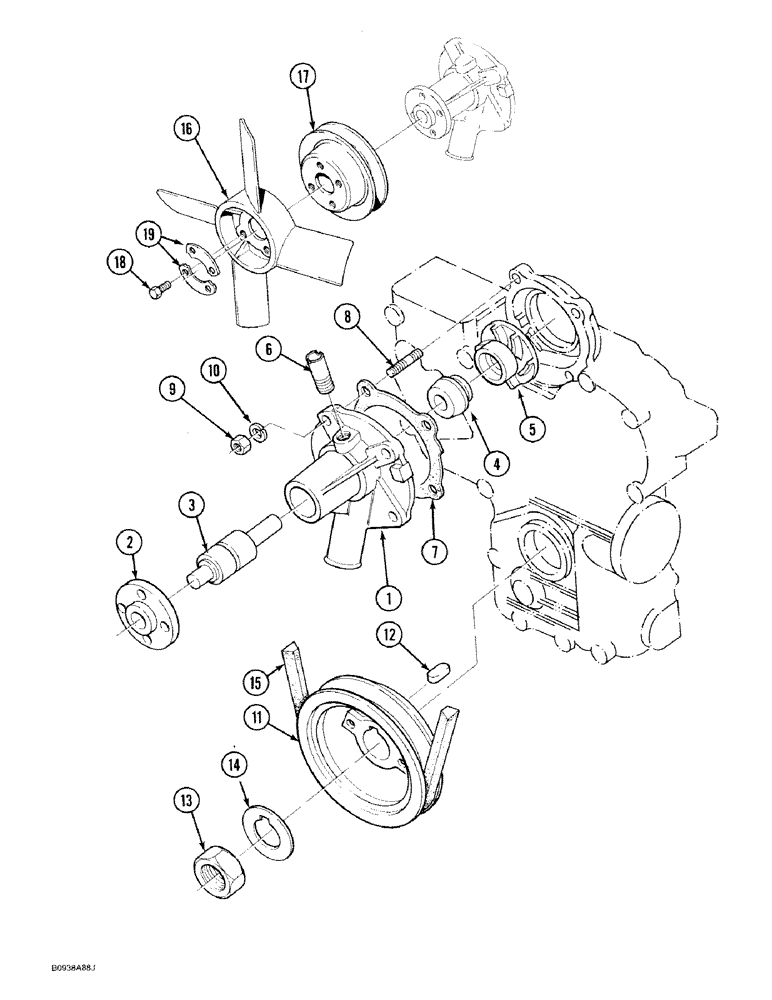

Запчасти Case 1818 (2-32) - WATER PUMP, DIESEL MODELS (02) - ENGINE

1959498C1

PUMP

ASSEMBLY water, Includes: Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING water pump, order P/N 1959498C1 pump assembly

1шт.

2

1959500C1

FLANGE

water pump

1шт.

3

1959501C1

BEARING ASSY

BEARING AND SHAFT water pump

1шт.

4

1959502C1

SEAL

water pump

1шт.

5

1959503C1

IMPELLER

water pump

1шт.

6

1959434C1

PIPE,6.5 mm ID, 10.5 mm OD, 27 mm Length

TUBE water return

1шт.

7

1981635C1

GASKET

water pump

1шт.

8

1959506C1

STUD

water pump

4шт.

9

1959205C1

NUT

stud

4шт.

10

1959206C1

SPRING WASHER

lock

4шт.

11

1959507C1

X

PULLEY fan drive

1шт.

12

1959306C1

KEY

pulley

1шт.

13

1959509C1

NUT,Hex, M20 x 5, RH

crankshaft, 20 mm

1шт.

14

1959511C1

WASHER

crankshaft

1шт.

15

1959646C1

BELT

Fan, Was P/N 1959510C1

1шт.

16

A173837

FAN

cooling

1шт.

17

1959513C1

PULLEY

fan

1шт.

18

1959476C1

BOLT

fan mounting

4шт.

19

1959514C1

WASHER

PLATE fan retaining

2шт.
