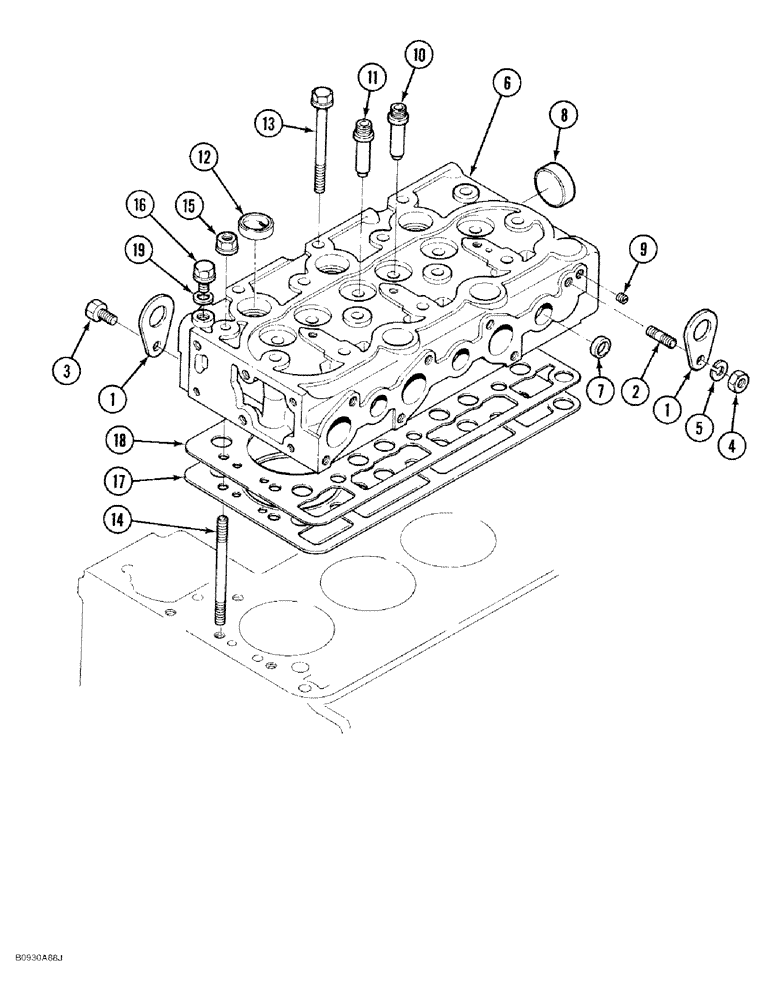

Запчасти Case 1818 (2-16) - CYLINDER HEAD, DIESEL MODELS (02) - ENGINE

1

1959151C1

HOOK

EYE lift

2шт.

2

1959169C1

STUD

lift eye

1шт.

3

1959163C1

BOLT

lift eye

1шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Lift Eye

1шт.

5

1959171C1

SPRING WASHER

lock, lift eye

2шт.

1959152C1

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, Includes: Ref. 6-12

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD cylinder, order P/N 1959152C1 head assembly

1шт.

7

1959154C1

PLUG

CAP sealing

5шт.

8

1959124C1

PLUG

CAP sealing

1шт.

9

1959126C1

PLUG

hex pipe, tapered, 8 x 7 mm

2шт.

10

1959172C1

GUIDE

inlet valve

3шт.

11

1959173C1

GUIDE

exhaust valve

3шт.

12

1959174C1

CHAMBER

pre-combustion

3шт.

13

1959177C1

BOLT

cylinder head, 9 x 78 mm

14шт.

14

1959178C1

STUD

cylinder head, 9 x 96 mm

1шт.

15

1959179C1

NUT

cylinder head, 9 mm

1шт.

16

1959180C1

PLUG

cylinder head, 16 mm

1шт.

17

1981623C1

CYLINDER HEAD GASKET

GASKET cylinder head

1шт.

18

1959183C1

SHIM

cylinder head gasket

1шт.

19

1959185C1

SEALING WASHER

seal

1шт.
