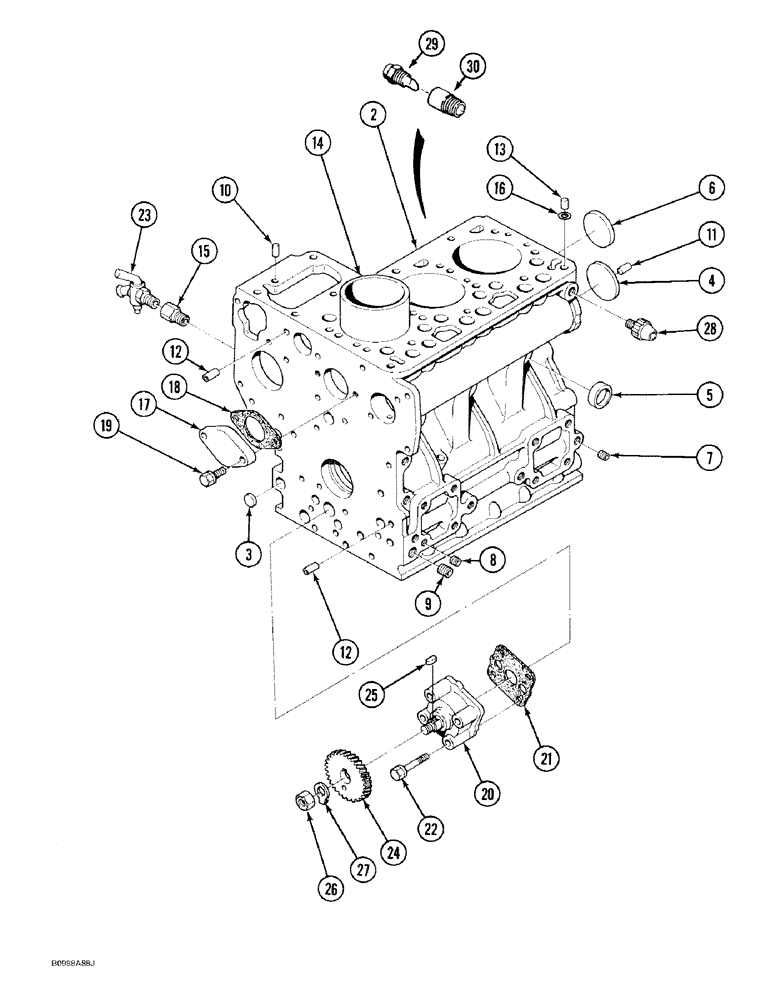

Запчасти Case 1818 (2-12) - CYLINDER BLOCK ASSEMBLY, DIESEL MODELS (02) - ENGINE

1959120C1

CRANKCASE

BLOCK ASSEMBLY cylinder, Includes: Ref. 2-15

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK order cylinder block assembly P/N 1959120C1

1шт.

3

1959122C1

PLUG

expansion

3шт.

4

1959123C1

PLUG

expansion

1шт.

5

1959124C1

PLUG

CAP sealing

5шт.

6

1959125C1

PLUG

CAP sealing

1шт.

7

1959126C1

PLUG

socket

6шт.

8

1959127C1

PLUG

socket

3шт.

9

1959128C1

PLUG

socket

1шт.

10

1959129C1

PIN

straight

2шт.

11

1959130C1

PIN

straight

2шт.

12

1959131C1

PIN

pipe

2шт.

13

1959132C1

PIN

pipe

1шт.

14

1959133C1

SLEEVE CYLINDER

LINER cylinder

3шт.

15

1959134C1

PLUG

ADAPTER drain valve

1шт.

16

1959135C1

O-RING,6.57mm ID x 2.325mm Width

SEAL pin

1шт.

17

1959136C1

PLATE

COVER water

1шт.

18

1981620C1

GASKET

water cover, Replaces: P/N 1959137C1

1шт.

19

1959155C1

BOLT

BOLT special, water cover

2шт.

20

1959138C1

PUMP

ASSEMBLY oil

1шт.

21

1981621C1

GASKET

oil pump, Replaces: P/N 1959139C1

1шт.

22

1959142C1

BOLT

oil pump, 6 x 47 mm

4шт.

23

1959143C1

COCK

VALVE drain

1шт.

24

1959144C1

GEAR

oil pump drive

1шт.

25

1959156C1

KEY

oil pump shaft

1шт.

26

1959157C1

NUT

hex, special, oil pump gear

1шт.

27

1959158C1

WASHER

special, locking

1шт.

28

1959159C1

PRESSURE SWITCH

SWITCH oil pressure

1шт.

29

1959636C1

RESISTOR

HEATER block

1шт.

30

221-604

REDUCER,Hex, 1" x 3/4" NPT

1 x 3/4 inch PT

1шт.

1959657C1

ENGINE ASSEMBLY

ENGINE complete, diesel

1шт.
