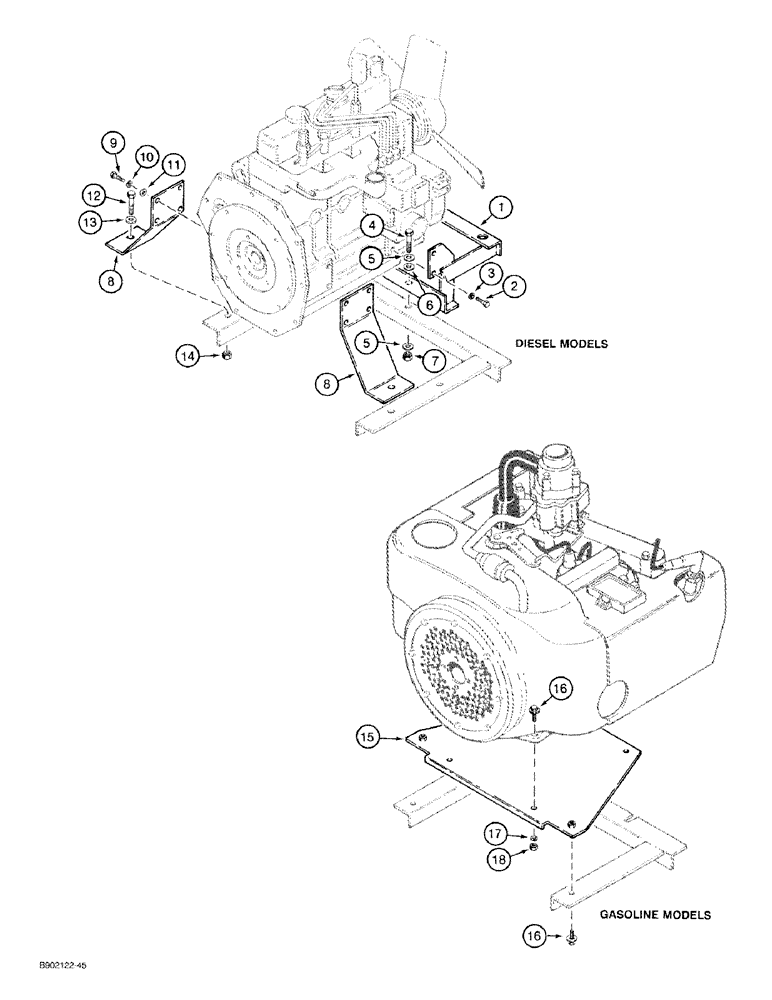

Запчасти Case 1818 (2-08) - ENGINE MOUNTING (02) - ENGINE

1

D137174

SUPPORT

engine mounting, diesel models, was P/N D134674

1шт.

2

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

Diesel models Hex, M10 x 1.25 x 25, 8.8, Full Thd

4шт.

3

892-11010

LOCK WASHER,M10

Diesel models M10

4шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Diesel models Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

5

196-15

WASHER,17/32" x 1 1/6" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch, diesel models

2шт.

6

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 3/32 inch, diesel models

1шт.

7

232-4118

NUT,1/2"-13, GC

NUT, LOCK, , Diesel models 1/2"-13, GC

1шт.

8

D122031

SUPPORT

BRACKET engine mounting, diesel models

2шт.

9

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 - 1.25 x 30 mm, Diesel models

8шт.

10

892-11010

LOCK WASHER,M10

Diesel models M10

8шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm, Diesel models

8шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Diesel models Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

13

196-15

WASHER,17/32" x 1 1/6" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch, diesel models

2шт.

14

232-4118

NUT,1/2"-13, GC

NUT, LOCK, , Diesel models 1/2"-13, GC

2шт.

15

E99898

PLATE

SUPPORT engine mounting, was P/N D138381, gasoline models

1шт.

16

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

hex flange, 3/8 NC x 1-1/4 inch, gasoline models

7шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8 inch, gasoline models

4шт.

18

232-4116

NUT,3/8"-16, GC

NUT, LOCK, , Gasoline models 3/8"-16, GC

4шт.
