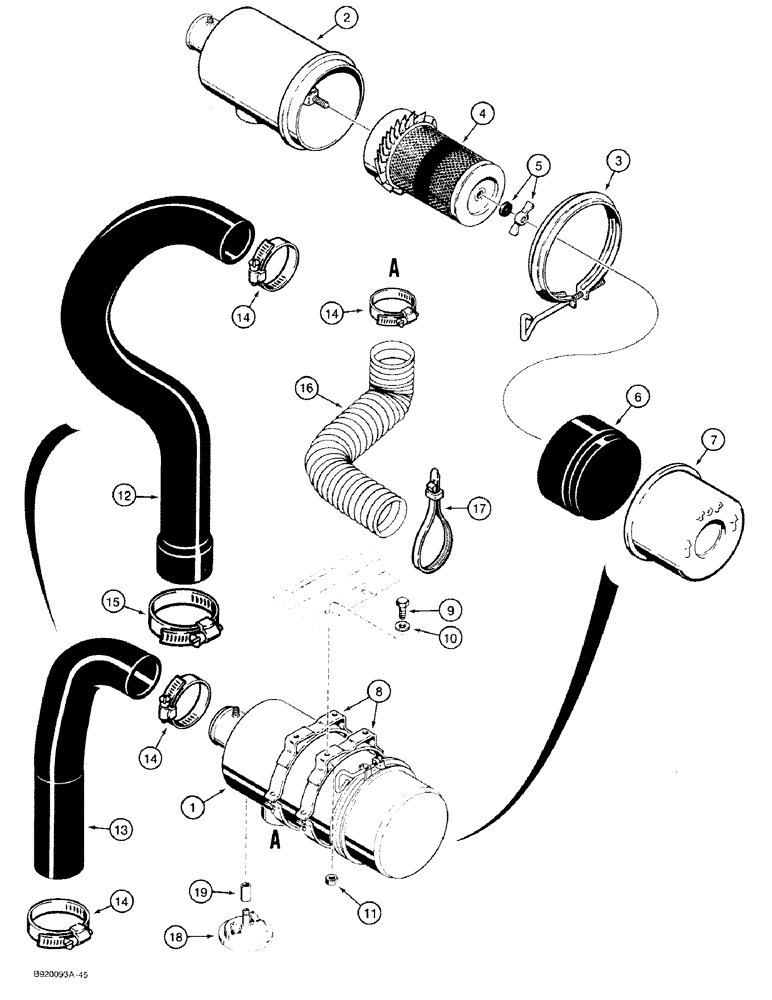

Запчасти Case 1818 (2-04) - AIR CLEANER AND MOUNTING PARTS (02) - ENGINE

1

D82572

AIR CLEANER

CLEANER ASSEMBLY air, engine, Includes: Ref. 2-7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

3

D86613

CLAMP

ASSEMBLY cap retaining, includes hardware

1шт.

4

D82571

FILTER, ELEMENT

ELEMENT filter

1шт.

5

D86612

NUT

NUT ASSEMBLY wing, element retaining, Includes washer

1шт.

6

D86615

BAFFLE

air cleaner

1шт.

7

73269C1

CUP

air cleaner

1шт.

8

D27245

COLLAR CLAMP

BAND air cleaner mounting, includes hardware

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

10

H426775

WASHER

flat, hardened

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

4шт.

12

D135953

INTAKE AIR HOSE,44.50 mm ID, 50.80 mm ID, SAE 20R4 Class D2

Rubber, Air Cleaner Outlet, Used on gasoline models only 44.50 mm ID, 50.80 mm ID, SAE 20R4 Class D2

1шт.

13

D122095

INTAKE AIR HOSE,44.00 mm ID, SAE J20, SAE 20R4 Class D2

Rubber, Air Cleaner Outlet, Used on diesel models only 44.00 mm ID, SAE J20, SAE 20R4 Class D2

1шт.

14

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

1-2шт.

15

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

1шт.

16

E20165

INTAKE AIR HOSE,44.50 mm ID x 560.00 mm

44.50 mm ID x 560.00 mm

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP nylon, retaining, was P/N L18337

1шт.

18

1983233C1

RESTRICTION SWITCH

SENDER, air cleaner restriction indicator, Replaces: P/N L103131

1шт.

19

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.
