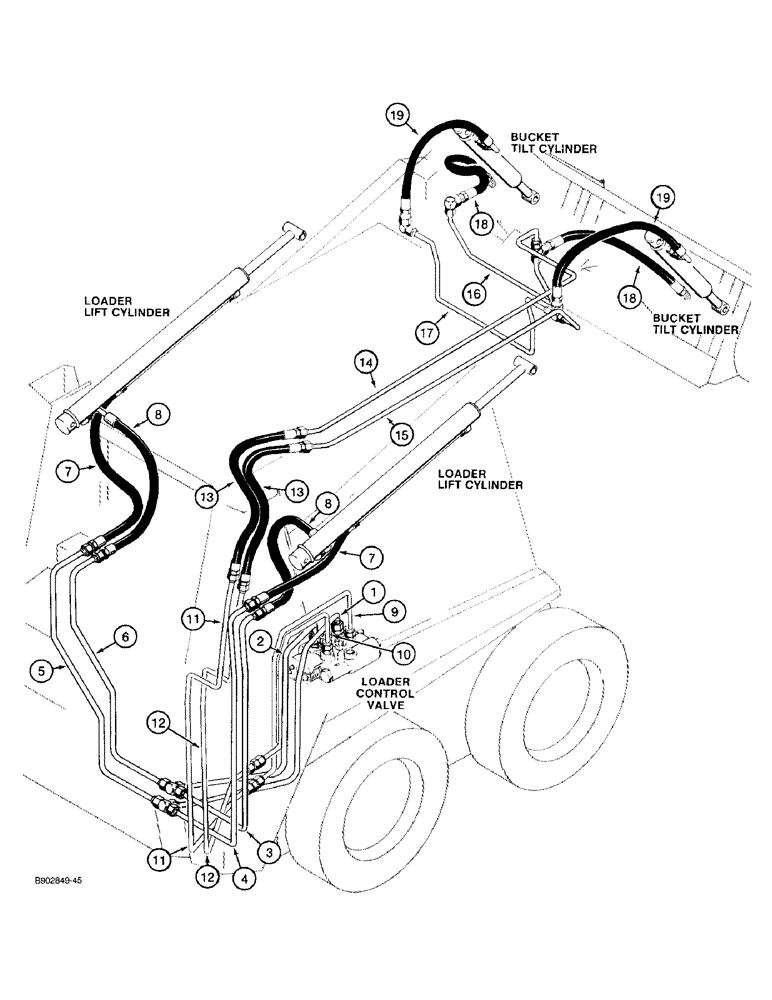

Запчасти Case 1818 (1-10) - PICTORIAL INDEX, LOADER LIFT AND BUCKET TILT HYDRAULICS (00) - PICTORIAL INDEX

1

Tube at Control Valve, Port "A", Loader Lift, Figure 8-18

1шт.

2

Tube at Control Valve, Port "B", Loader Lift, Figure 8-18

1шт.

3

Intermediate Tube to Closed End of Lift Cylinders, Figure 8-18

1шт.

4

Intermediate Tube to Rod End of Lift Cylinders, Figure 8-18

1шт.

5

Intermediate Tube to Rod end of Left hand Lift Cylinders, Figure 8-18

1шт.

6

Intermediate Tube to Closed End of Right hand Lift Cylinders, Figure 8-18

1шт.

7

Hose to Rod End of Lift Cylinders, Figure 8-18

1шт.

8

Hose to Closed End of Lift Cylinders, Figure 8-18

1шт.

9

Tube at Control Valve, Port "A", Bucket Tilt, Figure 8-20

1шт.

10

Tube at Control Valve, Port "B", Bucket Tilt, Figure 8-20

1шт.

11

Intermediate Tube to Rod End of Bucket Tilt Cylinders, Figure 8-20

1шт.

12

Intermediate Tube to Closed End of Bucket Tilt Cylinders, Figure 8-20

1шт.

13

Intermediate Hoses to Bucket Tilt Cylinders, Figure 8-20

1шт.

14

Tube to Rod End of Bucket Tilt Cylinders, Figure 8-20

1шт.

15

Tube to Closed End of Bucket Tilt Cylinders, Figure 8-20

1шт.

16

Crossover Tube to Rod End of Bucket Tilt Cylinders, Figure 8-20

1шт.

17

Crossover Tube to Closed End of Bucket Tilt Cylinders, Figure 8-20

1шт.

18

Hose to Rod End of Bucket Tilt Cylinders, Figure 8-20

1шт.

19

Hose to Closed End of Bucket Tilt Cylinders, Figure 8-20

1шт.
