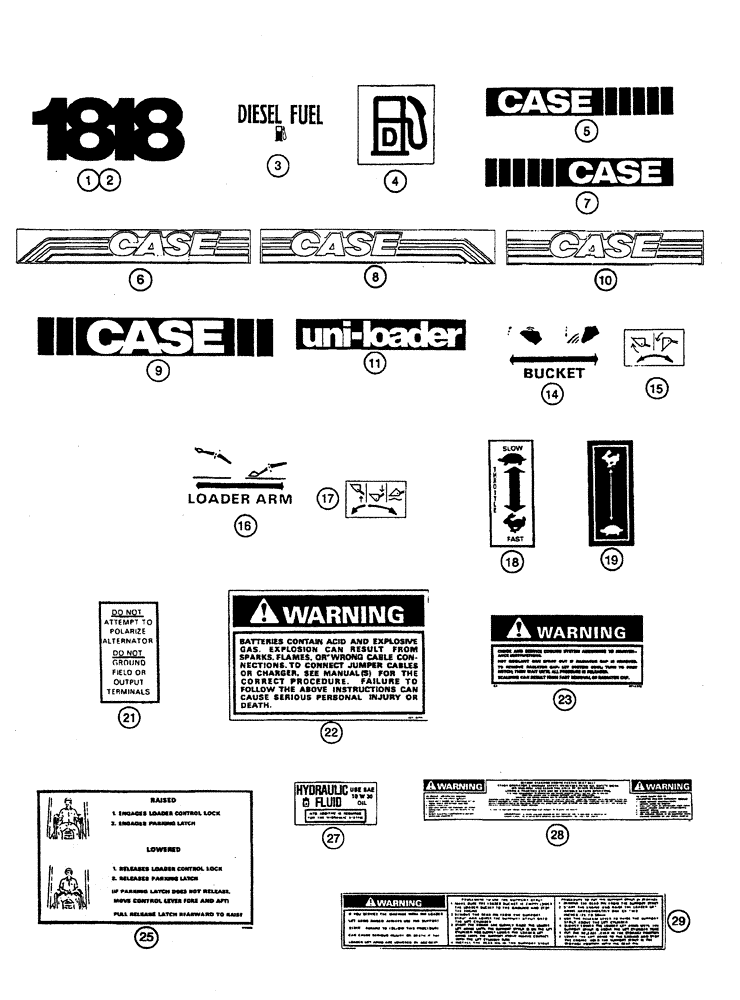

Запчасти Case 1818 (9-20) - DECALS (09) - CHASSIS/ATTACHMENTS

1

H434959

DECAL

1818, model number, brown models

2шт.

2

179122A1

DECAL

1818, model number, gray models

2шт.

3

321-6374

DECAL

diesel fuel, no longer available, order P/N 139879A1

1шт.

4

139879A1

DECAL

diesel fuel, graphic

1шт.

5

D139402

DECAL

Case, with treads, left hand, brown models

1шт.

6

179178A2

DECAL

Case, with stripes, left hand, gray models

1шт.

7

D139403

DECAL

Case, with treads, right hand, brown models

1шт.

8

179179A2

DECAL

Case, with stripes, right hand, gray models

1шт.

9

D124236

DECAL

Case, with treads, 4 inch, 102 mm high, rear swing out door, brown models

1шт.

10

179177A2

DECAL

Case, with stripes, 4 inch,102 mm high, rear swing out door, gray models

1шт.

11

D123964

DECAL

uni-loader, brown

2шт.

14

321-5850

DECAL

bucket control, no longer available, order P/N 139593A1

1шт.

15

139593A1

DECAL

bucket control, graphic

1шт.

16

321-5849

DECAL

loader arm control, no longer available, order P/N 139592A1

1шт.

17

139592A1

DECAL

loader arm control, graphic

1шт.

18

321-5847

DECAL

throttle, slow fast, black symbol on white background, if used

1шт.

19

178662A1

DECAL

throttle, slow fast, white symbol on black background, if used

1шт.

21

321-1061

DECAL

do not attempt to polarize alternator

1шт.

22

321-6714

DECAL

warning, batteries contain acid and explosive gas

1шт.

23

321-6672

DECAL

warning, check and service cooling system, diesel models only

1шт.

25

D134679

DECAL

raised/lowered, parking latch and operators restraint instructions

1шт.

27

H437687

DECAL

hydraulic fluid, use SAE 10-W-30 oil

1шт.

28

321-6460

DECAL

warning, before starting engine, fasten seat belt

1шт.

29

321-7029

DECAL

warning, if you service the machine with loader lift arms raised

1шт.
