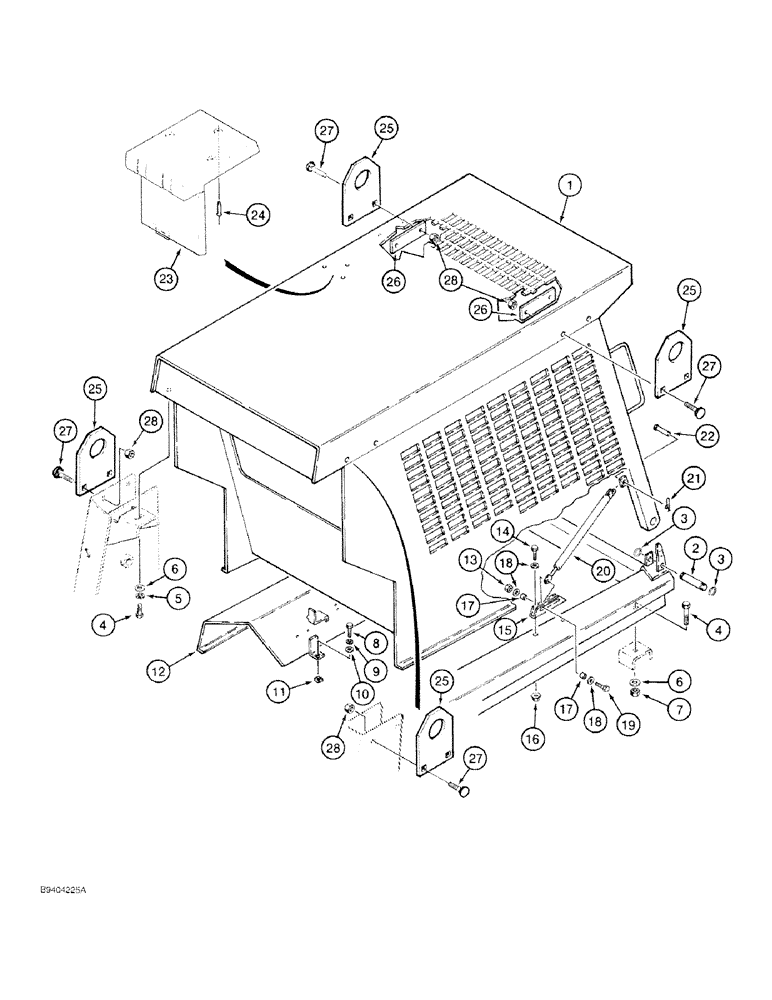

Запчасти Case 1818 (9-19A) - ROPS AND LIFTING BRACKETS, P.I.N. JAF0095543 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

104721A1

FRAME ROPS, see kits below, machinery item

1шт.

108738A1

KIT service, ROPS, brown, Includes: Ref. 1 above, manual storage box, and 11 decals listed on Figure 9-20 and 9-22, machinery item

1шт.

189617A1

KIT service, ROPS, gray, Includes: Ref. 1 above, manual storage box, and 11 decals listed on Figure 9-20 and 9-22, machinery item

1шт.

2

D120704

PIN,19.05mm OD x 88mm L

pivot, ROPS frame to compartment frame

2шт.

3

100-1175

SNAP RING,#75, Ext

Ring, Snap, , pivot pin #75, Ext

4шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, hardened, 17/32 x 1-1/4 x 3/16 inch

4шт.

7

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

8

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

H426775

WASHER

flat, special, hardened

2шт.

11

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

2шт.

12

101616A1

FRAME

operators compartment and ROPS mounting

1шт.

13

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

15

103566A1

SUPPORT

BRACKET guide, cylinder

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

17

103563A1

SPACER

cylinder mounting, 10 mm long

4шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

19

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

20

104620A1

SPRING

CYLINDER spring/gas

2шт.

21

H436613

COTTER PIN

PIN cotter, special

2шт.

22

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

2шт.

23

R46464

CASE

BOX operators manual

1шт.

24

151-522

RIVET,Pop, 3/16" x .575"

break mandrel, 3/16 x 17/32 inch

3шт.

25

D132975

LIFTING RING

BRACKET lift, 229 mm tall

4шт.

26

D132976

BAR

backup, front lift bracket

2шт.

27

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT carriage, lifting brackets, 1/2 NC x 1-1/2 inch

8шт.

28

230-4218

LOCK NUT,1/2"-13, GA

NUT hex, self locking, lifting brackets, 1/2 inch NC

8шт.
