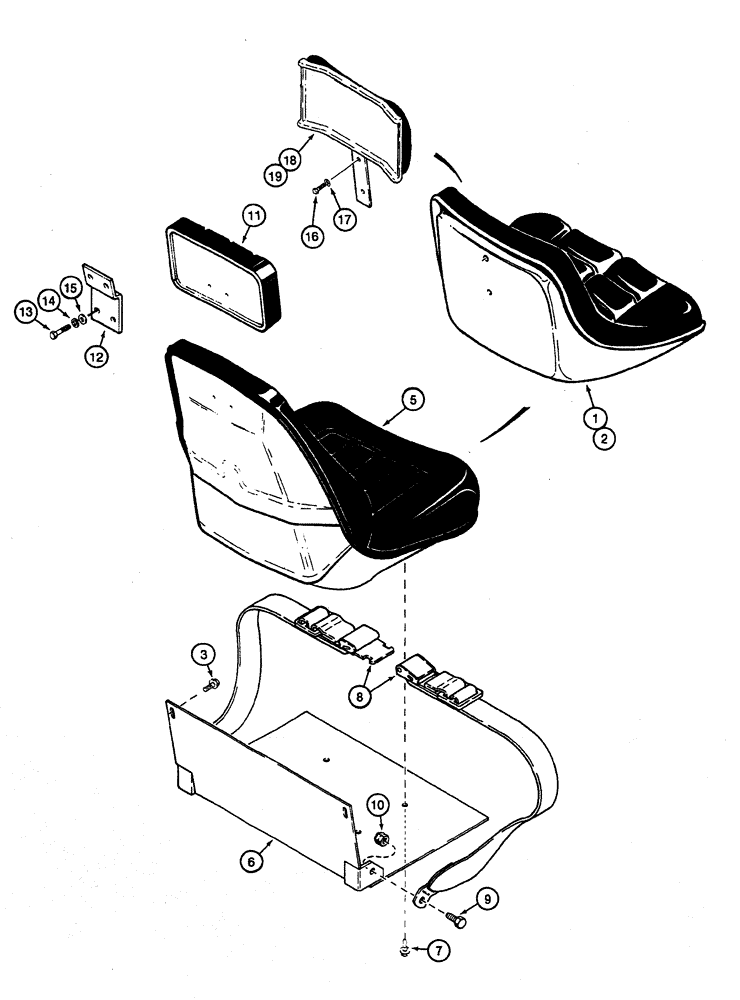

Запчасти Case 1818 (9-16) - SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

D125141

SEAT

operators, brown, complete, Start Serial: JAF0095668

1шт.

2

177641A1

SEAT

operators, gray, complete, Includes: Ref. 3-4

1шт.

3

N6674

CLIP

trim, not shown

2шт.

4

N14342

GASKET

TRIM cushion retaining, not shown

1шт.

5

E20007

SEAT

ASSEMBLY, operator, brown, complete, no longer available, order Ref. 1, Serial Range: -JAF0095668

1шт.

6

D135015

PLATE

SUPPORT seat

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

hex serrated flange, 3/8 NC x 3/4 inch

6шт.

8

D133868

SAFETY BELT ,2.00" W

2.00" W

1шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

E20008

BACKREST

PAD head rest, brown, used with E20007 seat only

1шт.

12

H437866

BRACKET

head rest, used with E20007 seat only

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

18

128181A1

BACKREST

PAD headrest, brown, used with D125141 seat

1шт.

19

177642A1

CUSHION

PAD headrest, gray, used with 177641A1 seat

1шт.
