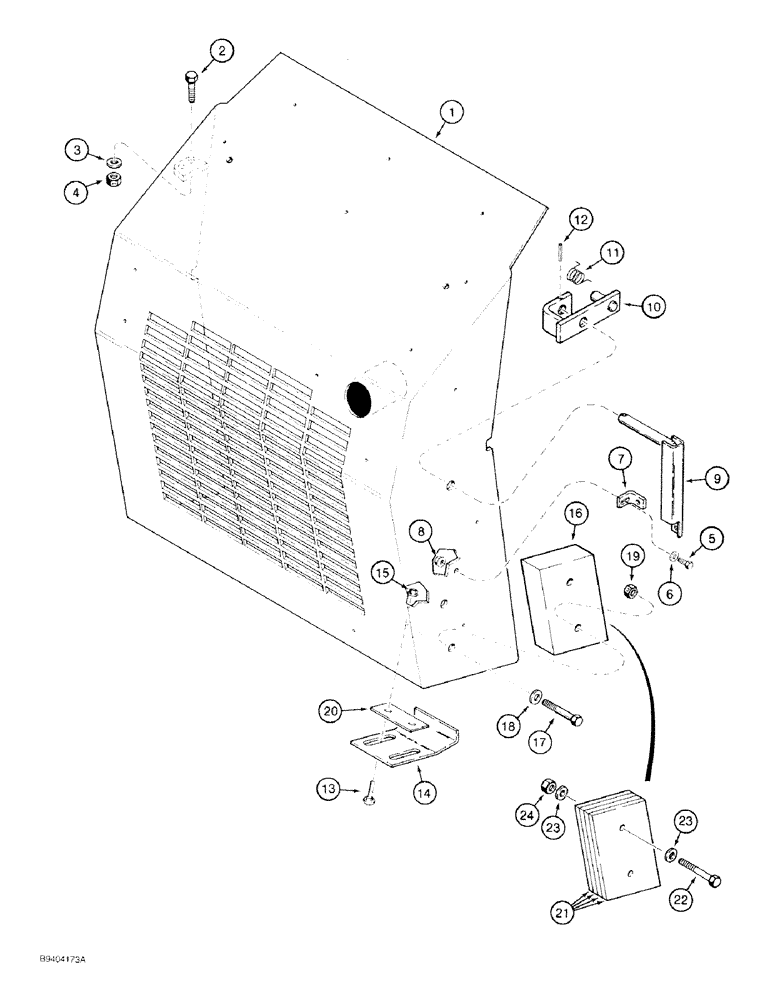

Запчасти Case 1818 (9-10) - REAR COUNTERWEIGHT AND SWING OUT DOOR, DIESEL MODELS (09) - CHASSIS/ATTACHMENTS

1

H674094

DOOR

rear swing out

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

196-15

WASHER,17/32" x 1 1/6" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch

2шт.

4

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

6

H426775

WASHER

flat, hardened

1шт.

7

D124776

BRACKET

ANGLE latch positioning, outer

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

1шт.

9

D134824

HANDLE

rear door

1шт.

10

D134821

LATCH

rear door

1шт.

11

D132020

SPRING

latch

1шт.

12

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

13

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

2шт.

14

H434914

SUPPORT

BRACKET rear door, lower

1шт.

15

231-5146

FLANGE NUT,3/8"-16

2шт.

16

H437663

WEIGHT

COUTERWEIGHT rear, no longer used, order Ref. 21, 22, 23, and 24

2шт.

17

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

18

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

19

232-4116

NUT,3/8"-16, GC

NUT hex lock, 5/8 inch NC, grade 8

4шт.

20

H438523

LARGE PLATE

SPACER bracket

1шт.

21

108424A1

BALANCER

COUNTERWEIGHT rear

8шт.

22

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, 1/2 NC x 3-1/4 inch

4шт.

23

H274894

WASHER

flat, 17/32 x 1-5/64 inch

8шт.

24

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.
