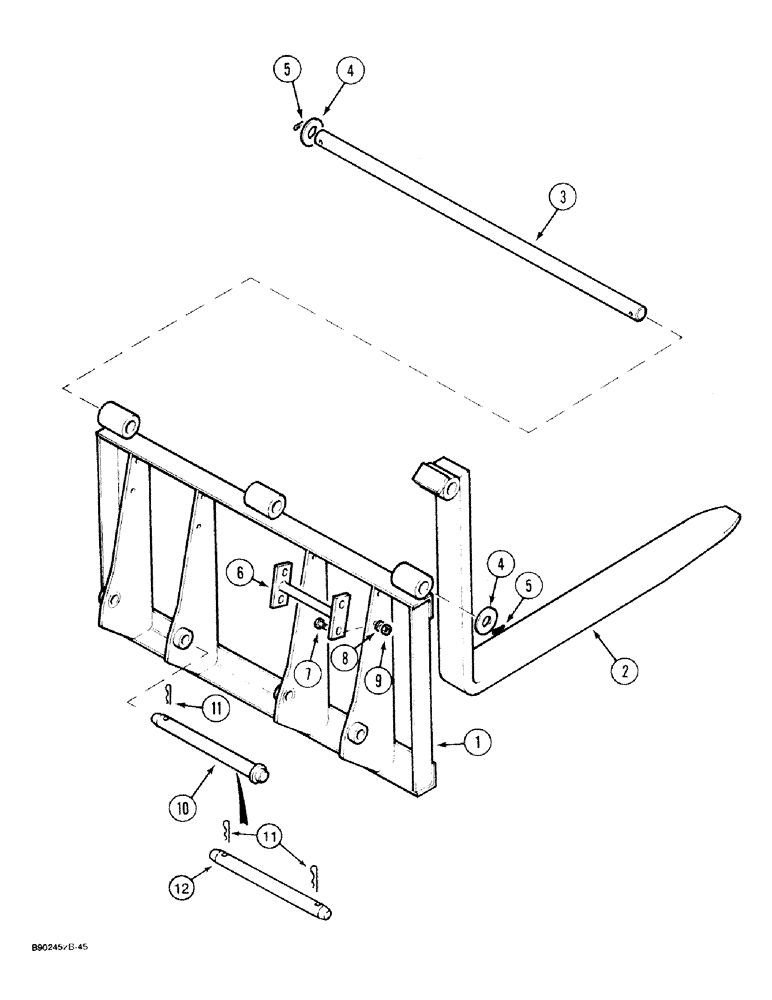

Запчасти Case 1818 (9-08) - 30 INCH (760 MM) PALLET FORK (09) - CHASSIS/ATTACHMENTS

1

D138991

FRAME

pallet fork

1шт.

2

D138986

FORK

pallet

2шт.

3

D57020

ROD

SHAFT fork retaining

1шт.

4

95-11106

WASHER,1" x 2" x .134"

flat, 1 inch

2шт.

5

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

6

D138882

PIN ASSY.

PIN tool tach

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

10

D138884

PIN

to lower retention holes, tool tach, order P/N H438549 pin, Ref. 12

2шт.

11

1978738C1

HAIR PIN COTTER

pin retaining, Replaces: P/N 136-251

2шт.

12

H438549

PIN

to lower retention holes, tool tach

2шт.
