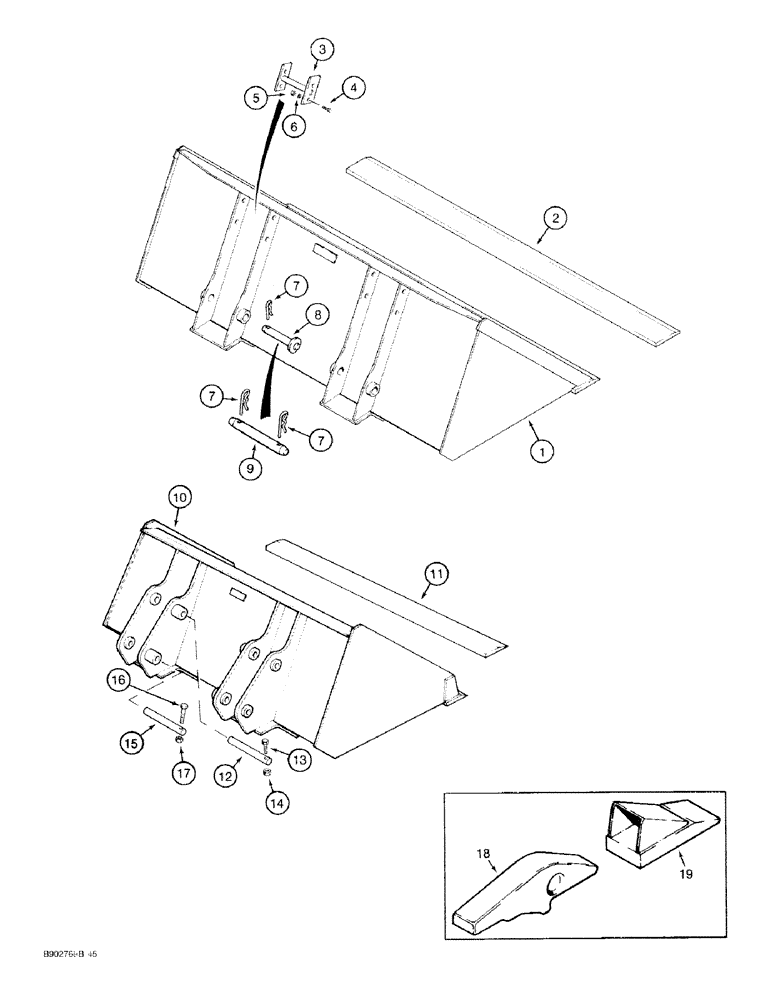

Запчасти Case 1818 (9-06) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

1

H674523

BUCKET

loader, 35 inch (889 mm) wide, machinery item, order from machinery price list, Includes: Ref. 2, used on models with tool tach

1шт.

2

D138918

EDGE, CUTTING

EDGE cutting, front, loader buckets used on models with tool tach

1шт.

1

H674524

BUCKET

loader, 44 inch (1118 mm) wide, machinery item, order from machinery price list, Includes: Ref. 2, used on models with tool tach

1шт.

2

D138892

EDGE, CUTTING

EDGE cutting, front, loader buckets used on models with tool tach

1шт.

3

D138882

PIN ASSY.

PIN weldment, loader buckets used on models with tool tach

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, Loader buckets used on models with tool tach

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Loader buckets used on models with tool tach 1/2"-13, G5

8шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Loader buckets used on models with tool tach 1/2"

8шт.

7

1978738C1

HAIR PIN COTTER

7/16 x 3-13/16", Replaces: P/N 136-251, loader buckets used on models with tool tach

2-4шт.

8

D138886

PIN

loader attachment bar to bucket, no longer required, order two of Ref. 9 and four of Ref. 7 for service, loader buckets used on models with tool tach

2шт.

9

H438550

PIN,22.22mm OD x 207mm L

loader attachment bar to bucket, used with 35 inch bucket, loader buckets used on models with tool tach

2шт.

9

H438549

PIN

loader attachment bar to bucket, used with 44 inch bucket, loader buckets used on models with tool tach

2шт.

10

H674525

BUCKET

loader, 35 inch (889 mm) wide, machinery item, order from machinery price list, Includes: Ref. 11, used on models without tool tach

1шт.

11

D138918

EDGE, CUTTING

EDGE cutting, front, loader buckets used on models without tool tach

1шт.

10

H674526

BUCKET

loader, 44 inch (1118 mm) wide, machinery item, order from machinery price list, Includes: Ref. 11, used on models without tool tach

1шт.

11

D138892

EDGE, CUTTING

EDGE cutting, front, loader buckets used on models with tool tach

1шт.

12

D138890

PIN,22.22mm OD x 148mm L

bucket to rod end of bucket tilt cylinder, loader buckets used on models with tool tach

2шт.

13

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Loader buckets used on models with tool tach Hex, 5/16"-18 x 2", G5

2шт.

14

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , Loader buckets used on models with tool tach 5/16"-18, GC

2шт.

15

D138891

PIN,25.4mm OD x 149mm L

bucket pivot, loader buckets used on models with tool tach

2шт.

16

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

hex, 3/8 NC x 2-1/2 inch, grade 8, loader buckets used on models with tool tach

2шт.

17

232-4116

NUT,3/8"-16, GC

NUT, LOCK, , Loader buckets used on models with tool tach 3/8"-16, GC

2шт.

18

T41165

TOOTH

SHANK tooth, was P/N D41165 bucket teeth

1шт.

19

T41166

TOOTH

POINT tooth, bucket teeth

1шт.
