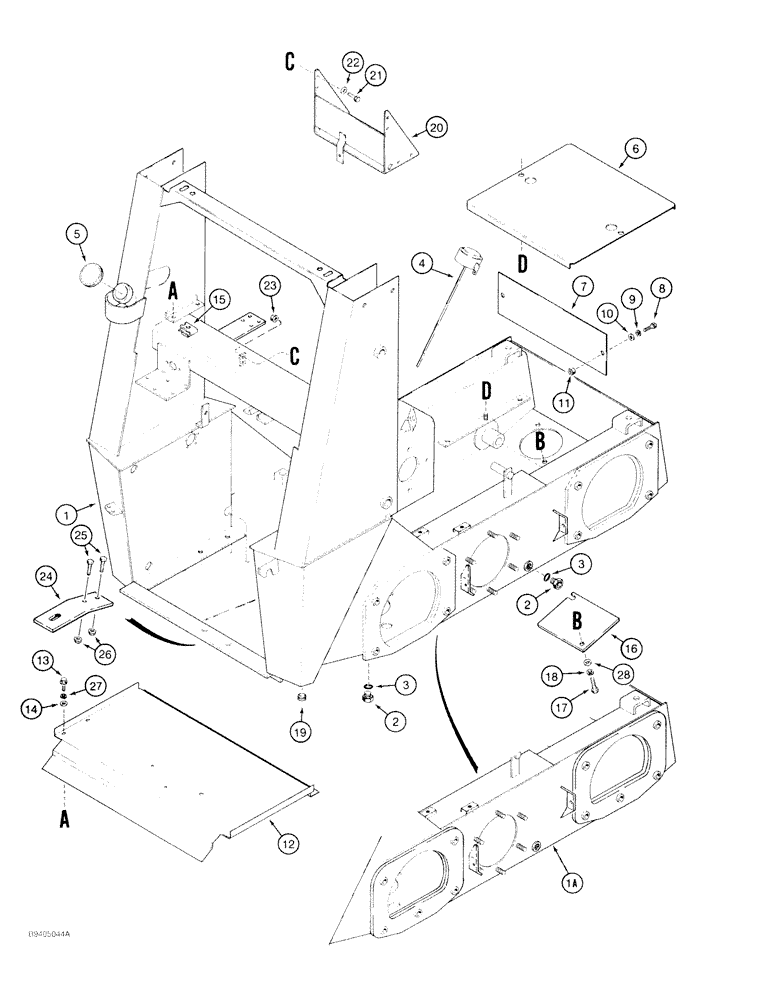

Запчасти Case 1818 (9-02) - CHASSIS AND COVERS (09) - CHASSIS/ATTACHMENTS

1

H674005

FRAME

CHASSIS uni-loader, for service order 118980A1, Ref. 1A, Serial Range: -JAF0095593

1шт.

1a

118980A1

FRAME

CHASSIS uni-loader, Start Serial: JAF0095593

1шт.

The 123854A1 field kit is available to put the 5th hole in the axles and frame. This kit includes hardware and parts for two axles.

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 3 Hex Soc, 3/4"-16 ORB

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D136181

CAP

hydraulic oil, includes dipstick

1шт.

5

D93757

CAP

fuel, vented, was P/N H436887

1шт.

6

D135018

PLATE

floor

1шт.

7

D135042

PLATE

access, heel

1шт.

8

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.

11

84899

SQUARE NUT,Sq, 3/8"-16, G2

square

2шт.

12

H437299

HOOD ASSY.

COVER engine

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

14

H426767

WASHER

flat, hardened, 1/4 inch

4шт.

15

131-631

SPRING NUT,U, Ret, 1/4"-20

U-type, 1/4 inch NC

4шт.

16

H436914

LARGE PLATE

COVER access, bottom

1шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8 inch PT

2шт.

20

D92395

BATTERY BOX

BOX battery mounting

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

4шт.

24

H437728

SUPPORT

DRAWBAR optional

1шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch

2шт.

26

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

28

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.
