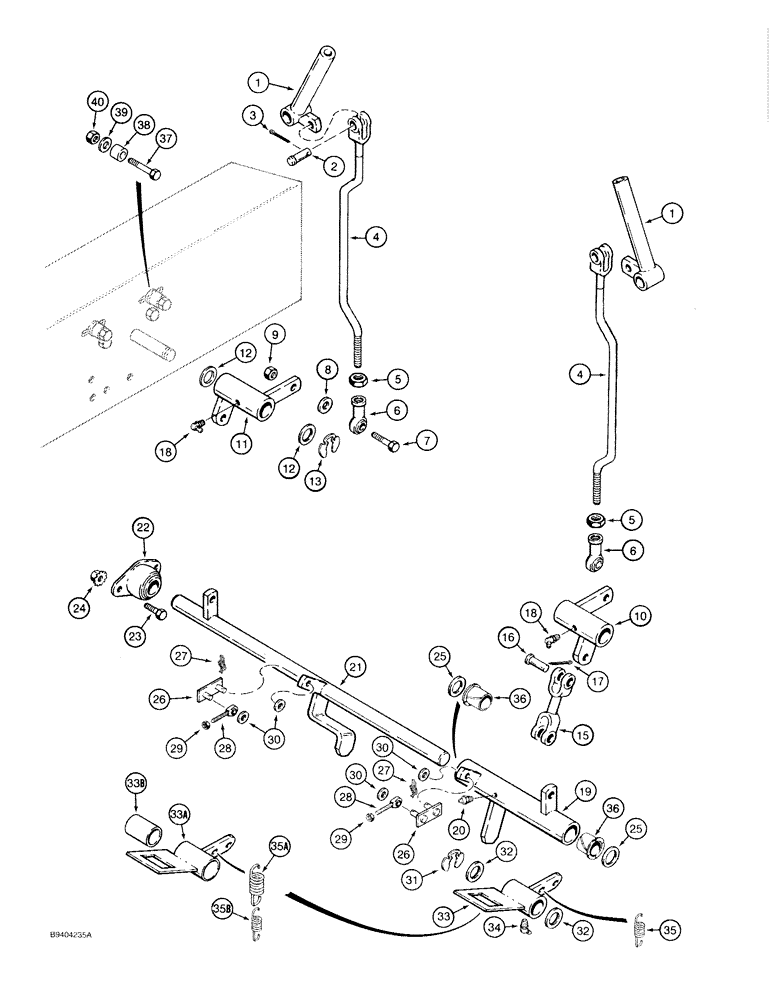

Запчасти Case 1818 (8-32) - LOADER CONTROLS (08) - HYDRAULICS

1

D135154

HANDLE

LEVER control, loader, right hand bucket control, left hand lift arm control, see Figure 4-28 for right hand lever used on models with a horn

2шт.

2

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

2шт.

3

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

4

D138716

ROD

control

2шт.

5

425-156

JAM NUT,Jam, 3/8"-24, G5

hex jam, 3/8 inch NF

2шт.

6

A32398

BALL JOINT

JOINT ball, 3/8 inch NF, was P/N D59922

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

9

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

10

H674347

CRANK

BELLCRANK right hand, bucket control

1шт.

11

H674346

CRANK

BELLCRANK left hand, loader control

1шт.

12

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

4шт.

13

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER bellcrank, was P/N D95097

2шт.

15

D135165

ROD

connecting

2шт.

16

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

4шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

18

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING grease, 45 degree, 1/8 PT self tap x 3/4 inch

2шт.

19

D135139

SLEEVE

SHAFT cross, bucket control, Replaces: P/N H674348

1шт.

20

219-86

LUBE NIPPLE,1/8" NPTF

FITTING grease, straight, self tap 1/8 PT x 5/8 inch

1шт.

21

D135146

SHAFT

cross, loader control

1шт.

22

D139039

BEARING ASSY,19mm ID

BEARING cross shaft mounting

2шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

4шт.

25

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

4шт.

26

H674585

LARGE PLATE

LINK mounting

2шт.

27

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER mounting link

4шт.

28

H404889

BALL JOINT

JOINT ball

2шт.

29

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

2шт.

30

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

31

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER loader lock, was P/N D95097

1шт.

32

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

2шт.

33

H674349

LOCK

PLATE loader lock, for service order Ref. 33A, 33B, 35A, and 35B, Serial Range: -JAF0095593

1шт.

33a

119817A1

LARGE PLATE

PLATE loader lock, Start Serial: JAF0095593

1шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 7-2

1шт.

33b

119616A1

BUSHING

plate

1шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 7-2

1шт.

34

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING grease, 45 degree, 1/8 PT self tap x 3/4 inch, use with Ref. 33

1шт.

35

A33699

SPRING

loader lock, used with Ref. 33

1шт.

35a

136999A1

SPRING

loader lock, outer, use with Ref. 33A

1шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 7-2

1шт.

35b

103735A1

SPRING

loader lock, inner, use with Ref. 33A

1шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 7-2

1шт.

36

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon, used with Ref. 33

2шт.

37

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

38

H439161

SPACER

control lever stop, Replaces: P/N D76208

4шт.

39

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

4шт.

40

231-5146

FLANGE NUT,3/8"-16

4шт.
