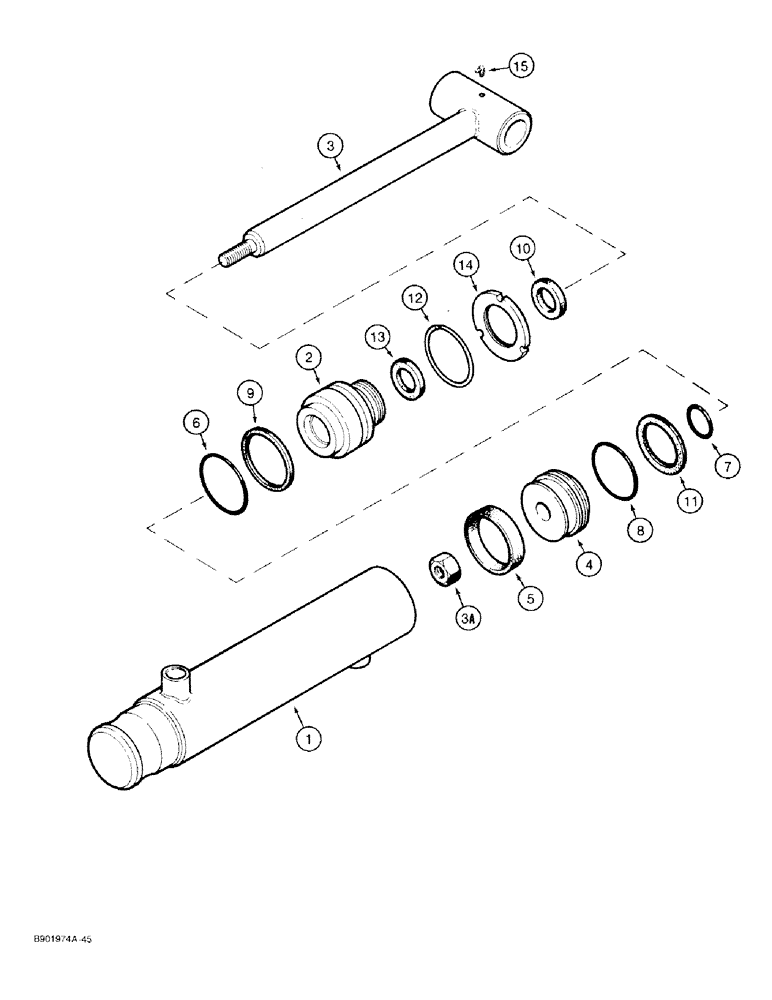

Запчасти Case 1818 (8-28) - BUCKET TILT CYLINDER P/N D136128 (08) - HYDRAULICS

D136128

CYLINDER

ASSEMBLY bucket tilt, 2 inch (51 mm) ID x 13 inch (333 mm) stroke, Includes: Ref. 1-15, see Figure 9-4 and 9-6 for mounting hardware, no longer available, order 104517A1, see Figure 8-30

2шт.

1

H438545

TUBE

cylinder

1шт.

2

N14643

GLAND

cylinder

1шт.

3

H438546

PISTON ROD

ROD cylinder, includes nut

1шт.

3a

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

NUT, LOCK, , Cylinder rod, P/N H436413 5/8"-11, GA

1шт.

4

N14642

PISTON

cylinder

1шт.

N14638

SEAL KIT

seal, cylinder, Includes: Ref. 5-14

1шт.

5

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

6

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

Gland -224, 70 Duro, 1.734" ID x .139" Thk

1шт.

7

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

Piston, inner -224, 70 Duro, 1.734" ID x .139" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING piston, outer

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

10

697494R91

OIL SEAL

WIPER rod, gland

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER outer, Serial Range: O-ring-piston

1шт.

12

NSS

NOT SOLD SEPARAT

RING wear, gland

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

14

H220459

NUT

RING lock

1шт.

15

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
