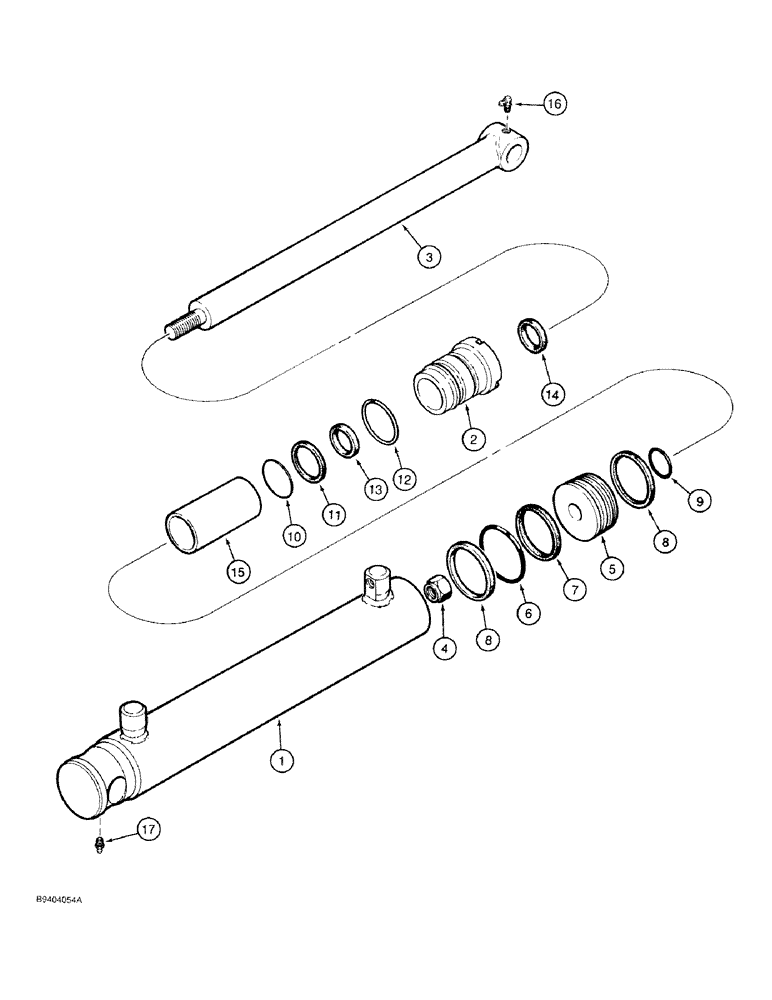

Запчасти Case 1818 (8-26) - LOADER LIFT CYLINDER P/N 104516A1 (08) - HYDRAULICS

104516A1

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, 2 inch (51 mm) x 27 inch (686 mm) stroke, Includes: Ref. 1-17, see Figure 9-4 and 9-6 for mounting hardware

2шт.

1

110504A1

JACK BODY

TUBE cylinder

1шт.

2

110506A1

CYLINDER END CAP

GLAND cylinder

1шт.

3

110505A1

PISTON ROD

ROD cylinder, 1-3/8 inch OD

1шт.

4

231-41310

LOCK NUT,5/8"-11, GB

NUT hex, self locking, 5/8 inch NC

1шт.

5

110501A1

JACK PISTON

PISTON cylinder

1шт.

110507A1

SEAL KIT

KIT seal, Includes: Ref. 6-14

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING outer, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING inner, piston

1шт.

10

238-6133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 6, 90 Duro

Gland -133, 90 Duro, 1.799" ID x .103" Thk

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup, gland

1шт.

12

NSS

NOT SOLD SEPARAT

RING lock, gland

1шт.

13

119214C1

SEAL

rod, gland

1шт.

14

536308R91

WIPER SEAL

rod wiper, gland

1шт.

15

110502A1

SPACER

rod

1шт.

16

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
