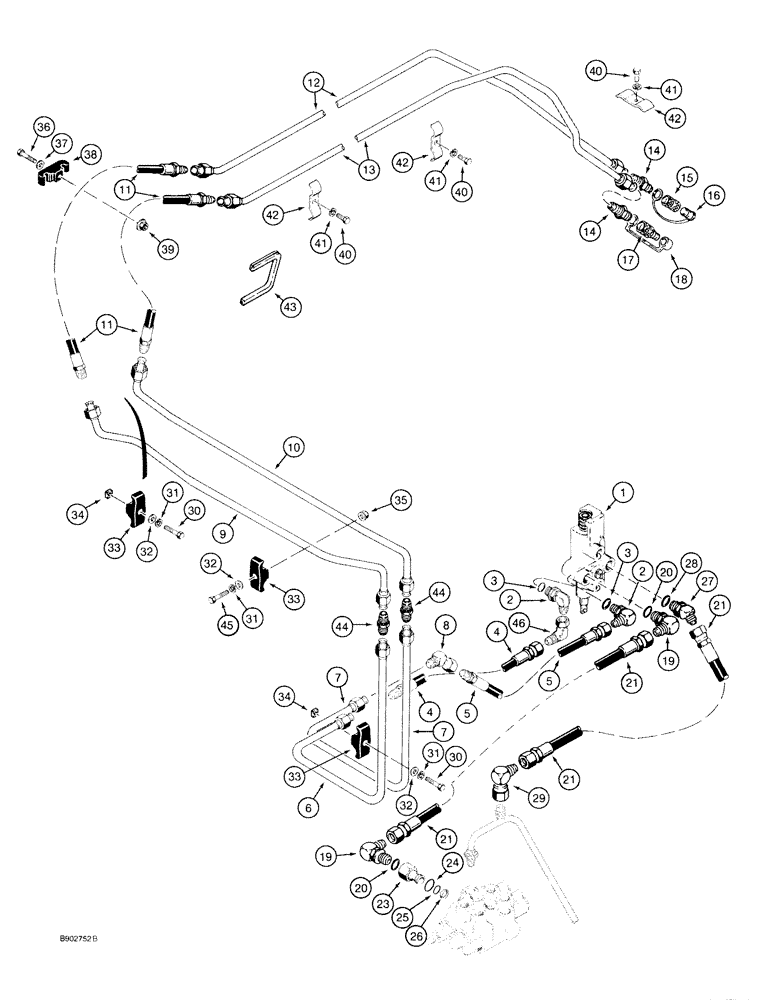

Запчасти Case 1818 (8-22) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D64670

VALVE

ASSEMBLY control, auxiliary, parts list Figure 8-16

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H437920

HOSE ASSY.

HOSE, 584 mm long, port A of auxiliary control valve to intermediate tube

1шт.

5

H437921

HOSE ASSY.

HOSE, 500 mm long, port B of auxiliary control valve to intermediate tube

1шт.

6

H674457

TUBE,0.5" OD

intermediate, port A

1шт.

7

H674458

TUBE,0.5" OD

intermediate, port B

1шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 deg, 3/4-16 inch flare x swivel straight thread

1шт.

9

H674460

TUBE,0.5" OD

crossover, port A

1шт.

10

H674459

TUBE,0.5" OD

crossover, port B

1шт.

11

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

950 mm long, intermediate, at loader arm

2шт.

12

H674461

TUBE,0.5" OD

to female quick disconnect

1шт.

13

H674462

TUBE,0.5" OD

to male quick disconnect

1шт.

14

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER straight, 3/4-16 flare x 3/8 inch PT

2шт.

15

D60707

COUPLING, BREAK AWAY

COUPLING quick disconnect, female

1шт.

16

D62402

PLUG

dust, at female quick disconnect

1шт.

17

D60708

COUPLING, BREAK AWAY

COUPLING quick disconnect, male

1шт.

18

H437970

PLUG

CAP dust, at female quick disconnect

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

A141008

HOSE,0.50" ID x 16.00", SAE 100R2

- To loader control valve 0.50" ID x 16.00", SAE 100R2

2шт.

H436154

FITTING,7/8" - 14

SLEEVE ASSEMBLY power beyond, Includes: Ref. 23-26

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

A52424

BACK-UP RING

RING backup, small O-ring

1шт.

27

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

32

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

33

D120679

CLAMP,Tube, 1/2"

tube

3шт.

34

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

2шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

1шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

37

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

38

D124301

CLAMP,3/4" ID

hose

1шт.

39

231-5146

FLANGE NUT,3/8"-16

1шт.

40

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

3шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

42

A63323

CLAMP

tube at loader arms, Replaces: P/N H437922

3шт.

43

D38500

LINING

TRIM edge,, 9-13/16 inch (249 mm) long, upper chassis, cut from P/N F42827 bulk trim, see below

1шт.

44

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare

2шт.

45

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

hex, 5/16 NC x 1-3/4 inch

1шт.

46

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree swivel, 3/4-16 inch thread

1шт.

F42827

TRIM,2946.4mm L

TRIM bulk,116 inch (2946 mm) long

1шт.
