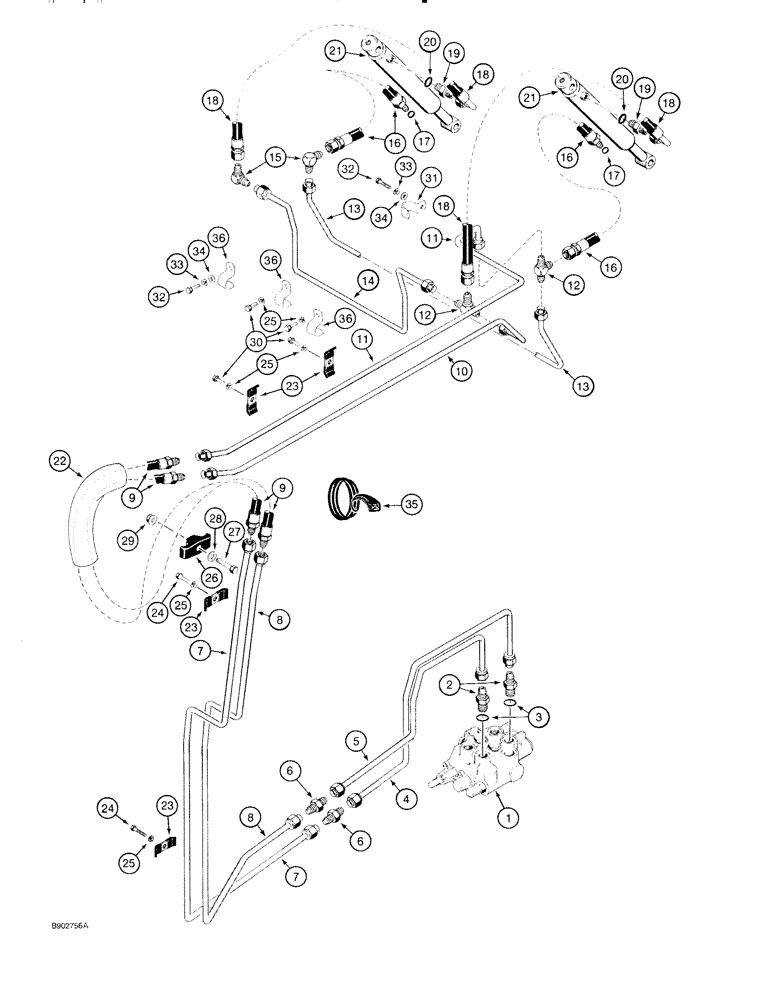

Запчасти Case 1818 (8-20) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H674709

VALVE

ASSEMBLY control, loader, parts list figure 8-6

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D139049

PIPE

TUBE at control valve, port A

1шт.

5

H675030

PIPE,0.5" OD

TUBE at control valve, port B, was P/N D136604

1шт.

6

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4-16 inch flare

2шт.

7

D139051

PIPE

TUBE intermediate, to rod end of bucket cylinders

1шт.

8

H675031

PIPE,0.5" OD

TUBE intermediate, to closed end of bucket cylinders, was P/N D139053

1шт.

9

D122103

HOSE

950 mm long, at loader arm

2шт.

10

D138781

PIPE

TUBE to closed end of bucket cylinders

1шт.

11

D138779

PIPE

TUBE to rod end of bucket cylinders

1шт.

12

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare

2шт.

13

D138783

PIPE

TUBE crossover, to rod end of bucket cylinders

1шт.

14

D138785

PIPE

TUBE crossover, to closed end of bucket cylinders

1шт.

15

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

90 degree, 9/16-18 inch flare

2шт.

16

D138814

HOSE

450 mm long, to rod end of bucket cylinders, Includes: Ref. 17

2шт.

18

D138813

HOSE,9.53mm ID x 370mm L, SAE 100R1

370 mm long, to closed end of bucket cylinders

2шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 20

2шт.

21

D136128

CYLINDER

ASSEMBLY bucket tilt, parts list figure 8-28

2шт.

21a

104517A1

CYLINDER ASSY.

CYLINDER ASSEMBLY bucket tilt, parts list figure 8-30

2шт.

22

H437219

TUBE

SLEEVE hose, at loader arm, if equipped

1шт.

23

R17319

CLAMP

tube, was P/N H434900

4шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

D124301

CLAMP,3/4" ID

hose, at loader arm

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

29

231-5146

FLANGE NUT,3/8"-16

1шт.

30

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

31

D140709

CLAMP

rod end of crossover tube

1шт.

32

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

BOLT hex, 3/8 NC x 3/4 inch, Replaces: P/N 413-612

2шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

35

D38500

LINING

TRIM edge, cut from P/N F42827 bulk, 9-13/16 inch, 249 mm long

1шт.

TRIM chassis, see below

1шт.

36

H45468

CLAMP

crossover tube

3шт.

F42827

TRIM,2946.4mm L

TRIM trim, 116 inch, 2946 mm long

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
