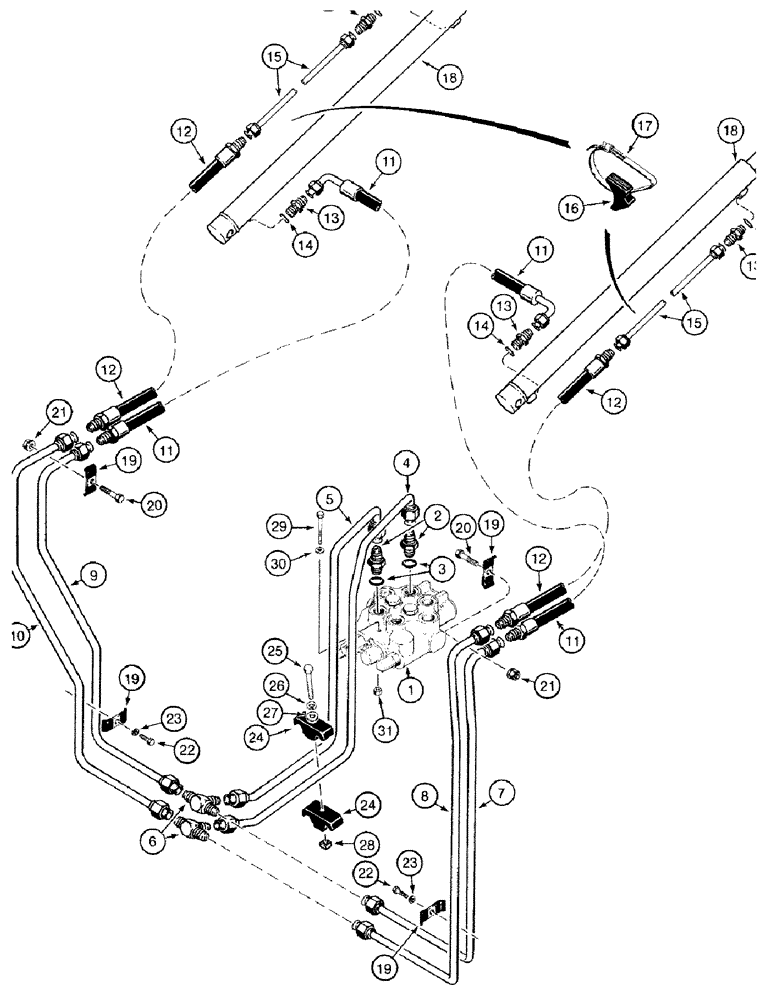

Запчасти Case 1818 (8-18) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H674709

VALVE

ASSEMBLY control, loader, parts list Figure 8-6

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D136608

PIPE

TUBE at control valve, port A

1шт.

5

D136598

PIPE

TUBE at control valve, port B

1шт.

6

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

7

D121943

PIPE

TUBE to closed end of right hand lift cylinder

1шт.

8

D121945

PIPE

TUBE to rod end of right hand lift cylinder

1шт.

9

D139382

PIPE

TUBE to closed end of left hand lift cylinder

1шт.

10

D139384

PIPE

TUBE to rod end of left hand lift cylinder

1шт.

11

D139490

HOSE

340 mm long, to closed end of lift cylinders

2шт.

12

D139491

HOSE

to rod end of lift cylinders, 450 mm long, was P/N E99973

2шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 14

4шт.

15

D139488

PIPE

TUBE to rod end of lift cylinder

2шт.

16

D38648

BLOCK

INSULATOR rubber, lift cylinder

2шт.

17

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adjustable, Lift cylinder #44, 2.31/3.25 Type F Worm

2шт.

18

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, parts list Figure 8-24

2шт.

18a

104516A1

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, parts list Figure 8-26

2шт.

19

R17319

CLAMP

tube, was P/N H434900

4шт.

20

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

2шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

D120679

CLAMP,Tube, 1/2"

tubes at control valve

2шт.

25

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

28

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

29

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

30

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

31

230-4115

LOCK NUT,5/16"-18, GA

NUT hex, self locking, 5/16 inch NC

2шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
