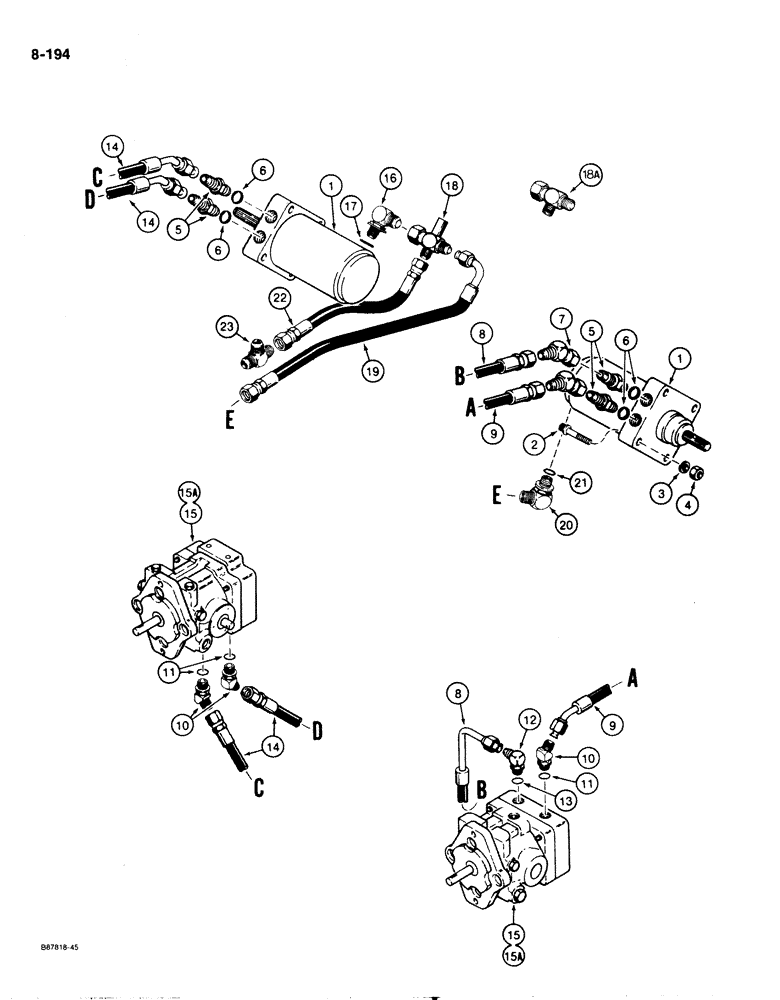

Запчасти Case 1818 (8-194) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT VARIABLE DISPLACEMENT PUMPS TO HYDRAULIC MOTORS (08) - HYDRAULICS

1

D136681

MOTOR, HYDRAULIC

MOTOR ASSEMBLY hydraulic, parts list Figure 6-168

2шт.

2

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT ferry head, 1/2" - 13 NC x 2-1/2"

8шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

4

129-184

NUT,1/2"-13, G8

hex, 1/2" - 13 NC, grade 8, plated

8шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, Includes: Ref. 6

4шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

7

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

45 degree, swivel

2шт.

8

D122102

HOSE

17-3/4" (450 mm) long, right hand hydraulic motor to right hand variable displacement pump

1шт.

9

D122101

HOSE

25-5/8" (650 mm) long, right hand hydraulic motor to right hand variable displacement pump

1шт.

10

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

45 degree, adjustable, Incl. Ref 11

3шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

14

D122100

HOSE

21-5/8" (550 mm) long, left hand hydraulic motor to left hand variable displacement pump

2шт.

15

D137544

PUMP

ASSEMBLY variable displacement, parts list Figures 6-160 and 6-162, diesel models only

2шт.

15a

D136764

PUMP

ASSEMBLY variable displacement, parts list Figures 6-164 and 6-166, gasoline models only

2шт.

15a

87297996

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

2шт.

15a

87297997

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

2шт.

16

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree, adjustable, Includes: Ref. 17

1шт.

18

D121814

FITTING

TEE adapter, diesel models only

1шт.

18a

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

adapter, gasoline models only

1шт.

19

D122141

HOSE

19-11/16" (500 mm) long, drain, right hand hydraulic motor

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, adjustable, Includes: Ref. 21

1шт.

22

D122142

HOSE

18-11/16" (475 mm) long, drain, left hand hydraulic motor

1шт.

23

218-596

TEE,1 1/16"-12 37 Degree

male

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.
