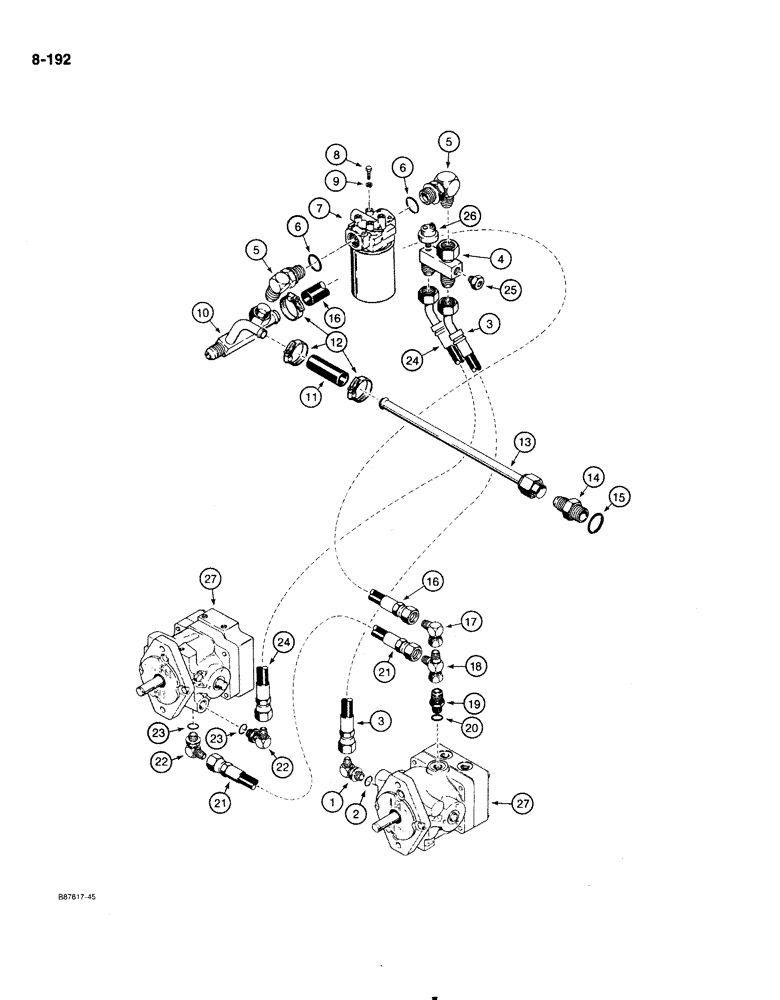

Запчасти Case 1818 (8-192) - HYDROSTATIC DRIVE HYDRAULIC CIRCIUT VARIABLE DISPLACEMENT PUMP TO RESERVOIR RETURN LINES (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Includes: Ref. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

3

D139444

HOSE

20-11/16" (525 mm) long, right hand variable displacement pump

1шт.

4

D139434

MANIFOLD

hydraulic, oil filter to right hand variable displacement pump

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, Incl. Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

7

D139372

FILTER, ENGINE OIL

FILTER ASSEMBLY hydraulic oil, parts list Figure 8-196

1шт.

8

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

D139395

MANIFOLD

hydraulic oil filter to left hand hydraulic motor

1шт.

11

D139443

HOSE

3-9/16" (90 mm) long, hydraulic oil filter to left hand hydraulic motor

1шт.

12

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj., hose top left hand hydraulic motor #16, 0.81/1.50 Type F Worm

3шт.

13

D139396

PIPE

TUBE hydraulic oil filter to left hand hydraulic motor

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, Incl. Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Connector

1шт.

16

D139446

HOSE

30-1/2" (775 mm) long, right hand hydraulic, Serial Range: motor-manifold

1шт.

17

218-5375

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, swivel

1шт.

18

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

swivel

1шт.

19

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 20 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

21

D57698

HOSE ASSY.

HOSE, 17" (432 mm) long, swivel tee to left hand variable displacement pump

1шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Includes: Ref. 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

24

D139445

HOSE

left hand hydraulic, Serial Range: motor-manifold

1шт.

25

221-844

PLUG,Hex Soc, 1/2"-14

hex socket head, 1/2" NPT

1шт.

26

H433190

SWITCH

vacuum indicator

1шт.

27

REF

INSTRUCTION

PUMP variable displacement, for correct assembly and components, see Figures 6-160 through 6-166

2шт.
