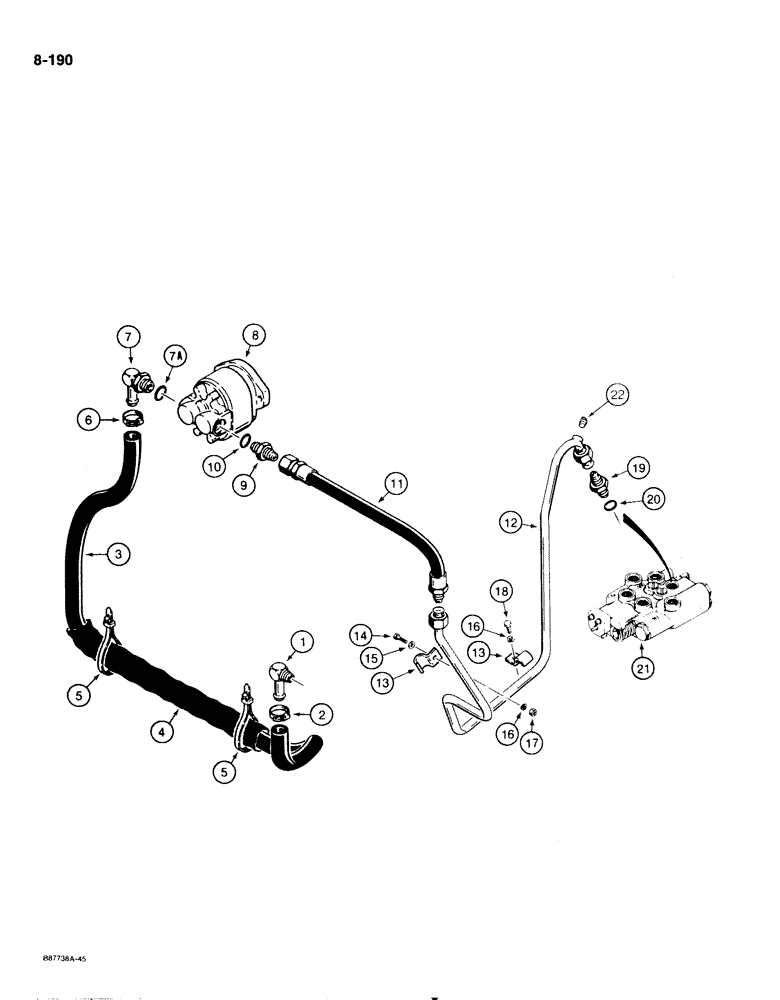

Запчасти Case 1818 (8-190) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT HYDRULIC RESERVOIR TO CONTROL VALVE (08) - HYDRAULICS

1

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

FITTING stem, 90 degree

1шт.

2

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj., hydraulic tank #16, 0.81/1.50 Type F Worm

1шт.

3

D136455

HOSE,19.05 mm ID x 1200.00 mm, SAE 100R3

Tank to Hydraulic Equipment Pump, Cut from P/N S118382 Bulk Hose, See Below 19.05 mm ID x 1200.00 mm, SAE 100R3

1шт.

4

D132054

SLEEVE

1-13/32" ID x 19-11/16" (500 mm) long, hose, at hydraulic tank, cut from P/N D134728 bulk hose, see below

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

6

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj., at hydraulic equipment pump #16, 0.81/1.50 Type F Worm

1шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

stem, 90 degree, adjustable, Incl. Ref. 7A

1шт.

7a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting

1шт.

8

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY equipment, parts list Figure 8-204 and 8-206

1шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

11

R43069

HOSE

16-1/2" (419 mm) long, hydraulic equipment pump to loader control valve tube

1шт.

12

E20120

TUBE

loader control valve, Replaces: P/N D139055

1шт.

13

38188

CLAMP

tube

2шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

21

D139830

VALVE

ASSEMBLY control, loader, parts list Figure 8-186

1шт.

22

353-200

PLUG

pressure test

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

D134728

TUBE

HOSE bulk, 1-13/32" (36 mm) ID x 28-17/32" (725 mm) long

1шт.
