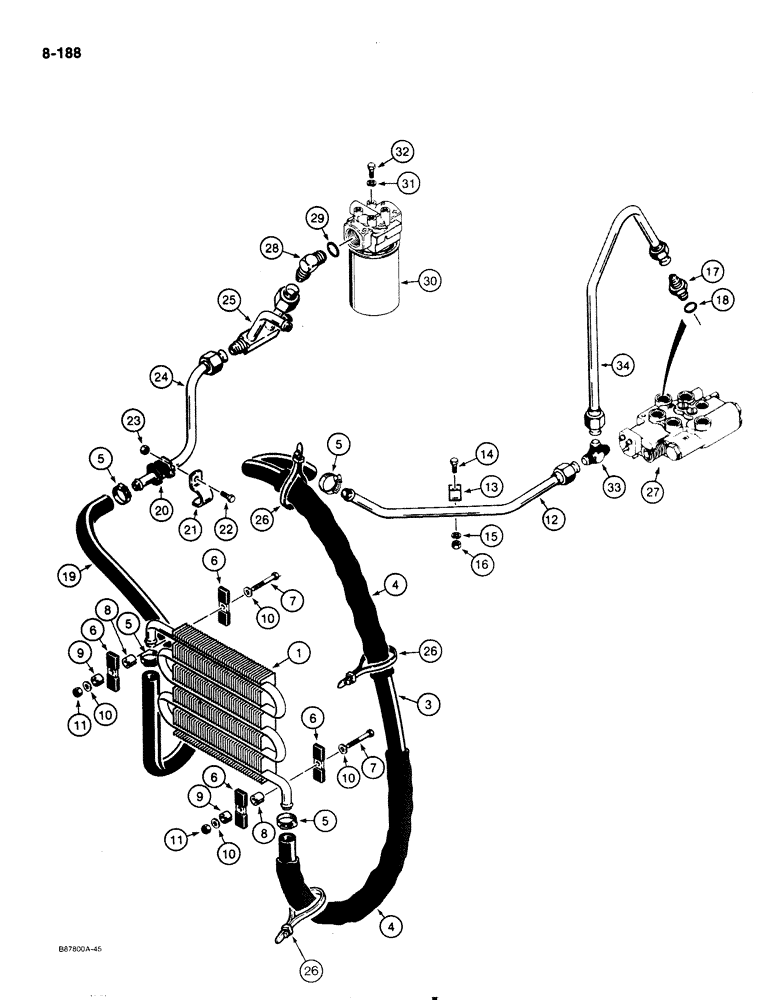

Запчасти Case 1818 (8-188) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT RETURN LINES TO OIL COOLER & FILTER (08) - HYDRAULICS

1

D57600

COOLER

oil

1шт.

3

E20852

HOSE

70" (1780 mm) long, control valve to oil cooler, Replaces: P/N D139522

1шт.

4

D132054

SLEEVE

500 mm long, hose, at oil cooler, cut from P/N D134728 bulk sleeve, see below

2шт.

5

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

4шт.

6

D54416

CLAMP

oil cooler

4шт.

7

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

8

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

clamp

2шт.

9

D76208

SPACER

oil cooler

2шт.

10

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

11

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC, plated

2шт.

12

D136612

PIPE

TUBE from control valve to oil cooler

1шт.

13

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

tube

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

19

D95238

HOSE

3/4" (19 mm) ID x 25" (635 mm) long, oil cooler to hydraulic oil filter, cut from P/N S118382 bulk hose, see below

1шт.

20

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube

1шт.

21

D74192

CLAMP

hydraulic filter tube

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

23

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" - 16 NC

1шт.

24

D139387

PIPE

TUBE at hydraulic filter

1шт.

25

D139395

MANIFOLD

at hydraulic filter

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

27

D139830

VALVE

ASSEMBLY control, parts list Figure 8-186

1шт.

28

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, Incl. Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

30

D139372

FILTER, ENGINE OIL

FILTER ASSEMBLY hydraulic oil, parts list Figure 8-196

1шт.

31

492-11038

LOCK WASHER,3/8"

4шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

33

218-596

TEE,1 1/16"-12 37 Degree

male

1шт.

34

E20124

TUBE

at control valve, Replaced: P/N D136616

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

D134728

TUBE

SLEEVE bulk, 1000 mm long

1шт.
