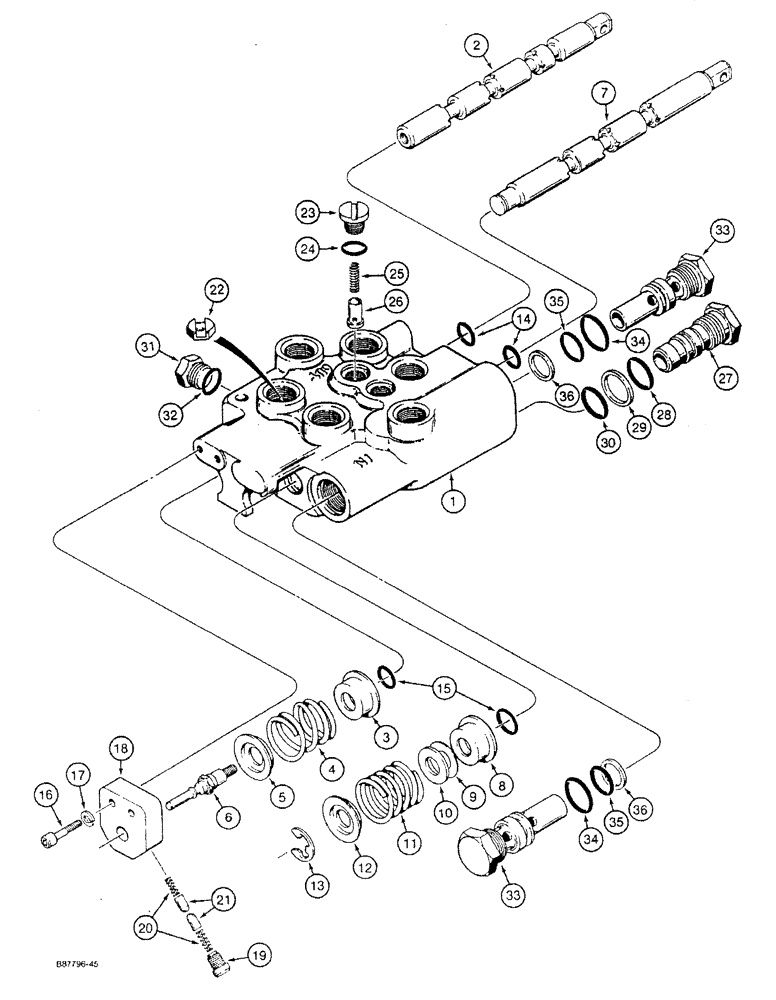

Запчасти Case 1818 (8-186) - LOADER CONTROL VALVE (08) - HYDRAULICS

D139830

VALVE

control, loader, two spool, Includes: Ref. 1-36

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL A port, loader lift

1шт.

3

H138271

WASHER

RETAINER spring

1шт.

4

F59118

SPRING

spool centering

1шт.

5

F59116

WASHER

RETAINER spring

1шт.

6

H139071

SCREW,1/4" - 20

special

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL, B port, loader bucket

1шт.

8

H52902

CAP

RETAINER spring

1шт.

9

F8235

WASHER

special, .062" (1.575 mm) thick

1шт.

10

H746164

WASHER

special, .156" (3.962 mm) thick

1шт.

11

F59118

SPRING

spool centering

1шт.

12

F59116

WASHER

RETAINER spring

1шт.

13

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , bucket spool #50, .392" Dia, E-Type

1шт.

14

F37887

O-RING

valve body, spool eye end

2шт.

15

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

valve body, detent and relief end

2шт.

16

61-416

HEX SOC SCREW,1/4"-20 x 1"

BOLT hex socket head, 1/4" - 20 NC x 1"

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

H125831

BLOCK

detent

1шт.

19

H424200

PLUG

detent

1шт.

20

H105049

SPRING

detent

2шт.

21

H104992

PAWL

detent

2шт.

22

D73659

FITTING

RESTRICTOR valve port, if used

1шт.

23

H47506

PLUG

ASSEMBLY load check valve, Includes: Ref. 24

2шт.

24

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

plug

1шт.

25

FH730374

SPRING

load check valve

2шт.

26

FH730366

PLUNGER

POPPET load check valve

2шт.

N14623

VALVE, PRESSURE RELI

VALVE ASSEMBLY relief, control valve, Includes: Ref. 27-30

1шт.

27

NSS

NOT SOLD SEPARAT

VALVE relief, control valve

1шт.

28

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

large

1шт.

29

N9711

BACK-UP RING,0.688" ID x 0.807" OD x 0.059"

backup, small O-ring

1шт.

30

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

small

1шт.

31

H94219

PLUG

ASSEMBLY hex head, Includes: Ref. 32

1шт.

32

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

plug

1шт.

N14624

PLUG

ASSEMBLY control valve, Includes: Ref. 33-36

2шт.

33

NSS

NOT SOLD SEPARAT

PLUG control valve

1шт.

34

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

large

1шт.

35

A64436

O-RING,0.549" ID x 0.755" OD

small

1шт.

36

N7319

RING

backup, small o-ring

1шт.
