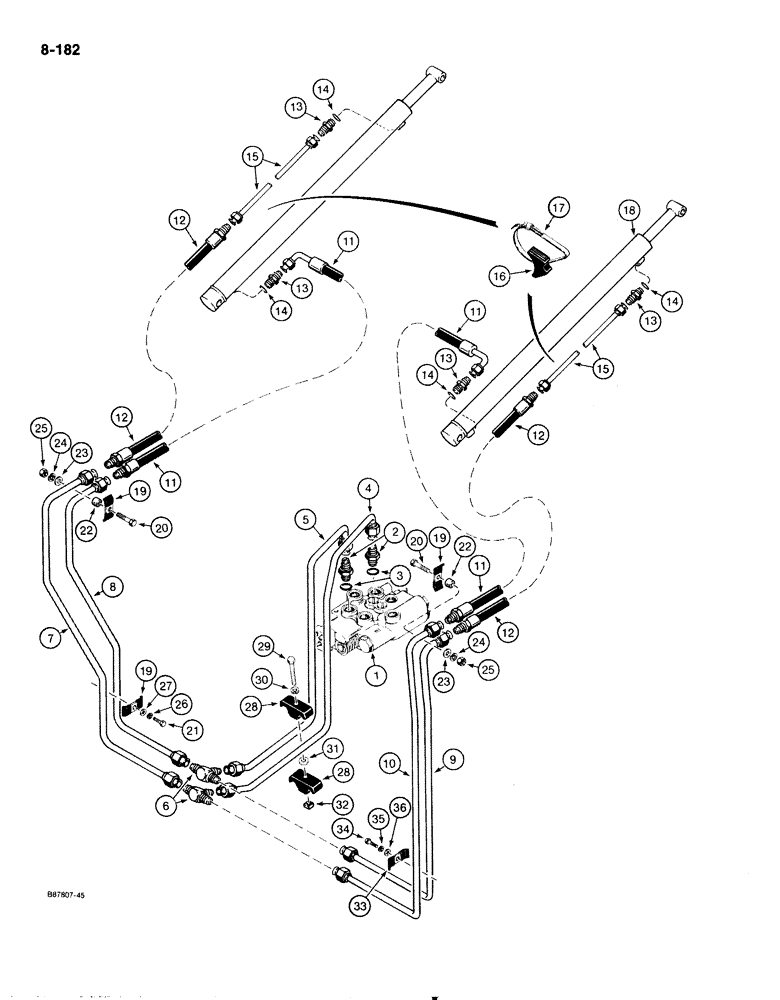

Запчасти Case 1818 (8-182) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D139830

VALVE

ASSEMBLY control, loader, parts list Figure 8-186

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

4

D136608

PIPE

TUBE, at control valve, port A

1шт.

5

D136598

PIPE

TUBE, at control valve, port B

1шт.

6

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

7

D139384

PIPE

TUBE, to closed end of left hand lift cylinder

1шт.

8

D139382

PIPE

TUBE, to rod end of left hand lift cylinder

1шт.

9

D121943

PIPE

TUBE, to rod end of right hand lift cylinder

1шт.

10

D121945

PIPE

TUBE, to close end of right hand lift cylinder

1шт.

11

D139490

HOSE

13-3/8" 340 mm long, to closed end of lift cylinder

2шт.

12

E99973

HOSE

17-3/4" 450 mm long, to rod end of lift cylinder

2шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, Incl. Ref. 14

4шт.

15

E20104

HYD TUBE,19.53 mm OD x 535 mm L

TUBE to rod end of lift cylinder, Replaces: P/N D139488

2шт.

16

D38648

BLOCK

INSULATOR rubber, lift cylinder

2шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP adjustable, lift, cylinder

2шт.

18

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, parts list Figure 8-208

2шт.

19

R17319

CLAMP

horizontal, lift cylinder tube on left hand side of chassis

3шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

22

D76208

SPACER

clamp

2шт.

23

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

24

492-1138

WASHER, LOCK

WASHER lock, 3/8", zinc plated

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

27

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

28

D120679

CLAMP,Tube, 1/2"

vertical, lift and bucket cylinder tube on right hand side of chassis

2шт.

29

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

30

492-1138

WASHER, LOCK

WASHER lock, 3/8", zinc plated

1шт.

31

95-6

WASHER,3/8"

flat, 3/8"

1шт.

32

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

1шт.

33

R17319

CLAMP

horizontal, lift cylinder tube on lower right hand side side of chassis

1шт.

34

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
