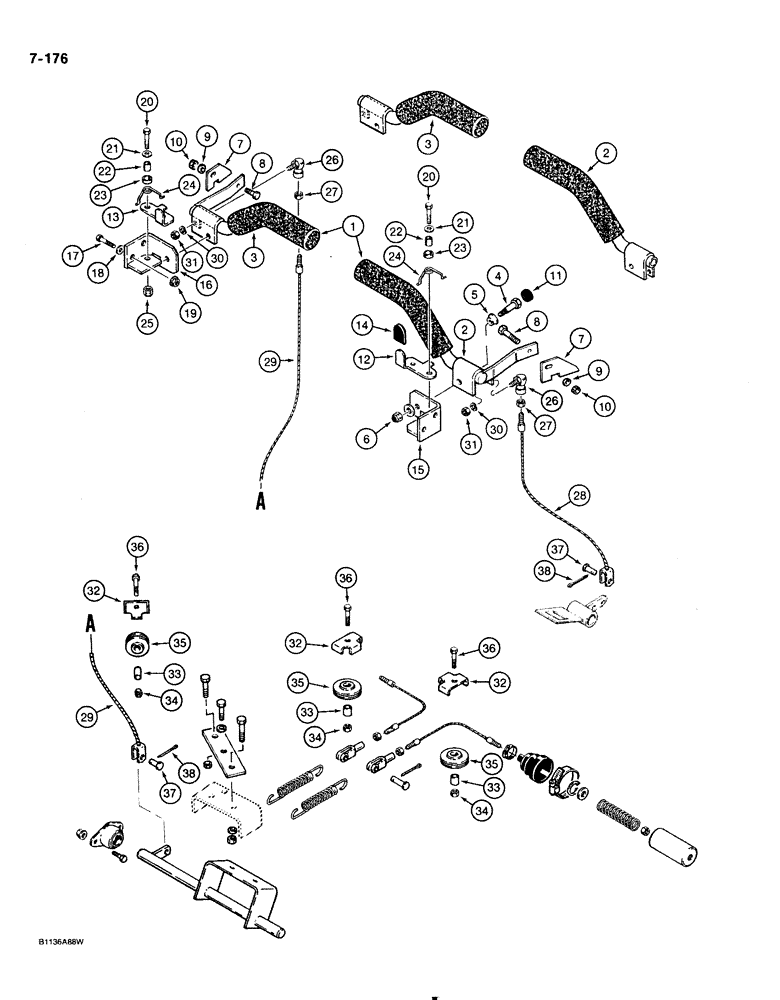

Запчасти Case 1818 (7-176) - PARKING LATCH AND OPERATORS RESTRAINTS (07) - BRAKES

1

E99886

COVER

operator restraint bars

2шт.

2

E20844

BAR

right hand, operator restraint, Replaces: P/N E20179

1шт.

3

E20843

BAR

left hand operator restraint, Replaces: P/N E20180

1шт.

4

121-125

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 1/2"

SCREW, Hex Soc Hd, Shdr, 5/16"-18 x 1/2"

2шт.

5

D134922

WASHER

special, at restraint bar

2шт.

5a

H426775

WASHER

special, at restraint bar

2шт.

6

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

7

E20178

PLATE

locking, operator restraint bar

2шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

195-521

WASHER,5/16", SAE

plain, 5/16", plated

2шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT self-locking, 5/16"

2шт.

11

D134923

CAP

bolt

2шт.

12

D131228

LATCH

right hand

1шт.

13

D131229

LATCH

left hand

1шт.

14

D134924

HANDLE

GRIP vinly, latch

2шт.

15

E20840

BRACKET

right hand mounting, Replaces: P/N D131233

1шт.

16

E20839

BRACKET

left hand mounting, Replaces: P/N D131234

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

18

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

19

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" - 18 NC

4шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

22

H270777

SPACER

at latch

2шт.

23

D44352

BUSHING

at latch

2шт.

24

D134464

SPRING

latch

2шт.

25

131-217

LOCK NUT

NUT hex, self locking, 3/8" - NC, plated, grade 8

2шт.

26

H169920

BALL JOINT

JOINT ball, 1/4" - 28 NF

2шт.

27

129-121

NUT,1/4"-28, G5

2шт.

28

D128666

CABLE

right hand, lock

1шт.

29

E99995

CABLE

left hand, park

1шт.

H438504

CABLE,670mm L

stainless, left hand, 670 mm

1шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

31

129-121

NUT,1/4"-28, G5

2шт.

32

D124466

RETAINER

cable

3шт.

33

D95743

SPACER

cable pulley

3шт.

34

131-217

LOCK NUT

NUT hex, self locking, 3/8" - 16 NC, plated, grade 8

3шт.

35

D124465

PULLEY,54mm OD

cable

3шт.

36

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

37

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

38

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.
