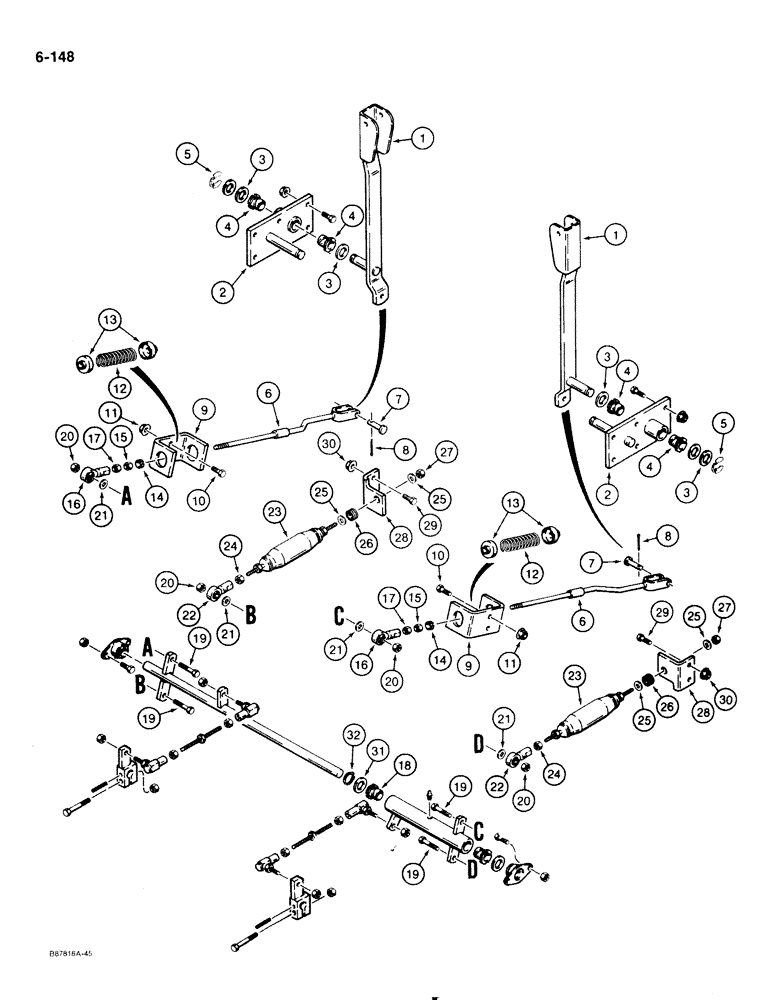

Запчасти Case 1818 (6-148) - FORWARD AND REVERSE PUMP CONTROL LEVERS AND LINKAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
D135161
LEVER
ARM control lever
2шт.
2
D135158
BRACKET
pivot mounting
2шт.
3
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
WASHER flat, spacer
4шт.
4
72323
BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L
nylon
4шт.
5
D95097
RING, SNAP
RETAINER bushing
2шт.
6
E99866
ROD
control
2шт.
7
141-54
CLEVIS PIN,3/8" x 1 1/16"
Special length 3/8" x 1 1/16"
2шт.
8
132-331
COTTER PIN,3/32" x 5/8"
PIN, SPLIT (COTTER), 3/32" x 5/8"
2шт.
9
D137785
BRACKET
spring retaining
2шт.
10
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
11
131-931
FLANGE NUT,Flg, USR, 5/16"-18
hex, flange type, special locking, 5/16" - 18 NC
4шт.
12
D70304
COMPRESSION SPRING,0.955" OD x 4.00" L
rod
2шт.
13
D63156
SPRING CUP
SEAT spring
4шт.
14
D123539
BUSHING
SPACER, 13/32" (10 mm) ID x 5/8" (16 mm) O.D. x 1/4" (6 mm) long
2шт.
15
131-528
LOCK NUT,3/8"-24
NUT hex, self locking, 3/8" - 24 NF
2шт.
16
D59922
BALL JOINT
JOINT ball, 3/8" - 24 NF
2шт.
17
86585245
SPECIAL NUT,JAM, 5/8" - 18
hex, jam, 3/8" - 24 NF, plated
2шт.
18
D136221
SLEEVE
BELLCRANK shaft
1шт.
19
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
20
232-4116
NUT,3/8"-16, GC
NUT hex, self locking, 3/8" - 16 NC, plated
4шт.
21
A30058
WASHER
special
4шт.
22
D59922
BALL JOINT
JOINT ball, 3/8" - 24 NF, shock absorber
2шт.
23
D66538
SHOCK ABSORBER
ABSORBER shock, pump controls
2шт.
24
86585245
SPECIAL NUT,JAM, 5/8" - 18
hex, jam, 3/8" - 24 NF, plated
2шт.
25
195-525
WASHER,3/8", SAE
flat, 3/8", plated
4шт.
26
49566
GROMMET
bracket
2шт.
27
131-528
LOCK NUT,3/8"-24
NUT hex, self locking, 3/8" - 24 NF
2шт.
28
D135164
SUPPORT
BRACKET shock mounting
2шт.
29
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
30
131-931
FLANGE NUT,Flg, USR, 5/16"-18
hex, flange type, special locking, 5/16" - 18 NC
4шт.
31
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
WASHER flat, spacer
1шт.
32
R39773
SNAP RING,#75, Ext
Ring, Snap, , shaft #75, Ext
1шт.
Выбрано товаров: 32
