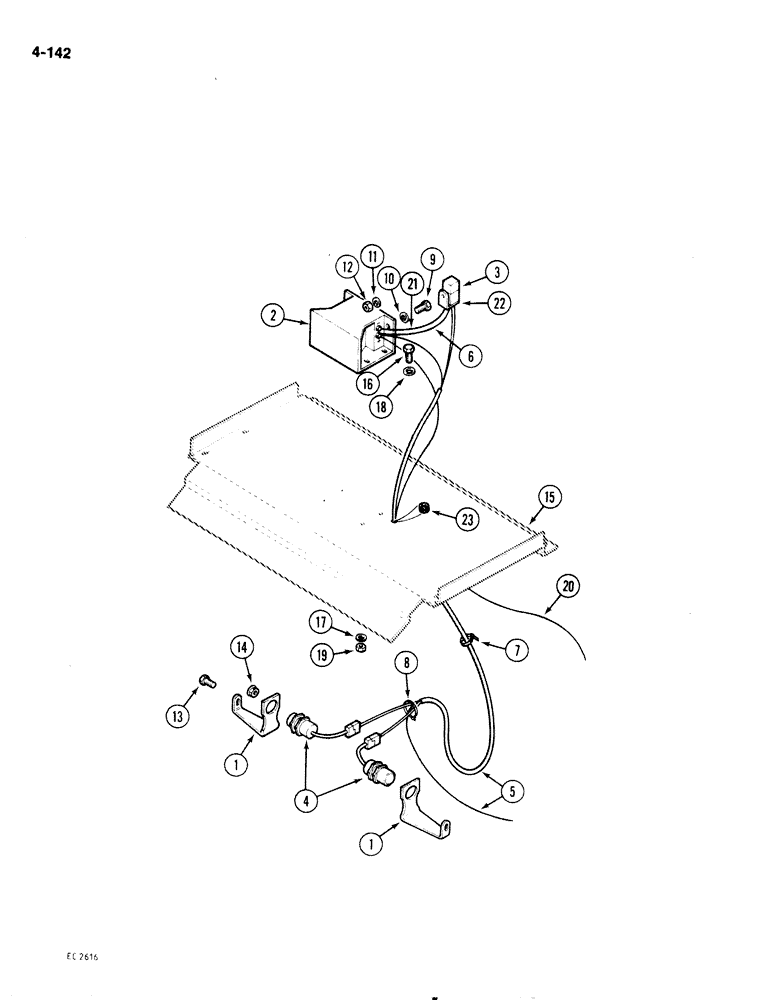

Запчасти Case 1818 (4-142) - BACKUP ALARM - OPTIONAL (04) - ELECTRICAL SYSTEMS

1

E20400

SUPPORT

BRACKET switch mounting, Replaces: P/N H435139

2шт.

2

D121972

ALARM

backup

1шт.

FOR NEW STYLE ALARM USE P/N 283178A3. CAN BE SEEN IN 85XT, 90XT, AND 95XT BOOKS

1шт.

3

D128310

RELAY

30 amperes

1шт.

P/N D128310 relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature.

1шт.

4

D136898

SWITCH

proximity

2шт.

5

E20190

HARNESS

reversing alarm

1шт.

6

E20189

ELECTRICAL WIRE

WIRE positive link, 5-1/8" (130 mm)

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

9

163-32

SCREW,Hex, #10 - 24 x 1/2"

BOLT hex head, No. 10 - 24 NC x 1/2", plated

1шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

11

195-513

WASHER,#10

flat, No. 10, plated

1шт.

12

129-17

NUT,Hex, #10 - 24

NUT hex, No. 10 - 24 NC, plated

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" - 18 NC, plated

2шт.

15

REF

INSTRUCTION

COVER engine, see Figure 9-214

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

17

195-518

WASHER,1/4", SAE

flat, 1/4", plated

4шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

19

425-104

NUT,1/4"-20, Cl 5

hex, 1/4" - 20 NC, zinc plated

4шт.

20

E20405

ELECTRICAL WIRE

WIRE positive feed, 22-7/8" (580 mm)

1шт.

21

E20242

ELECTRICAL WIRE

WIRE negative link, 5-1/8" (130 mm)

1шт.

22

E20251

PLUG

relay

1шт.

23

49566

GROMMET

harness

1шт.
