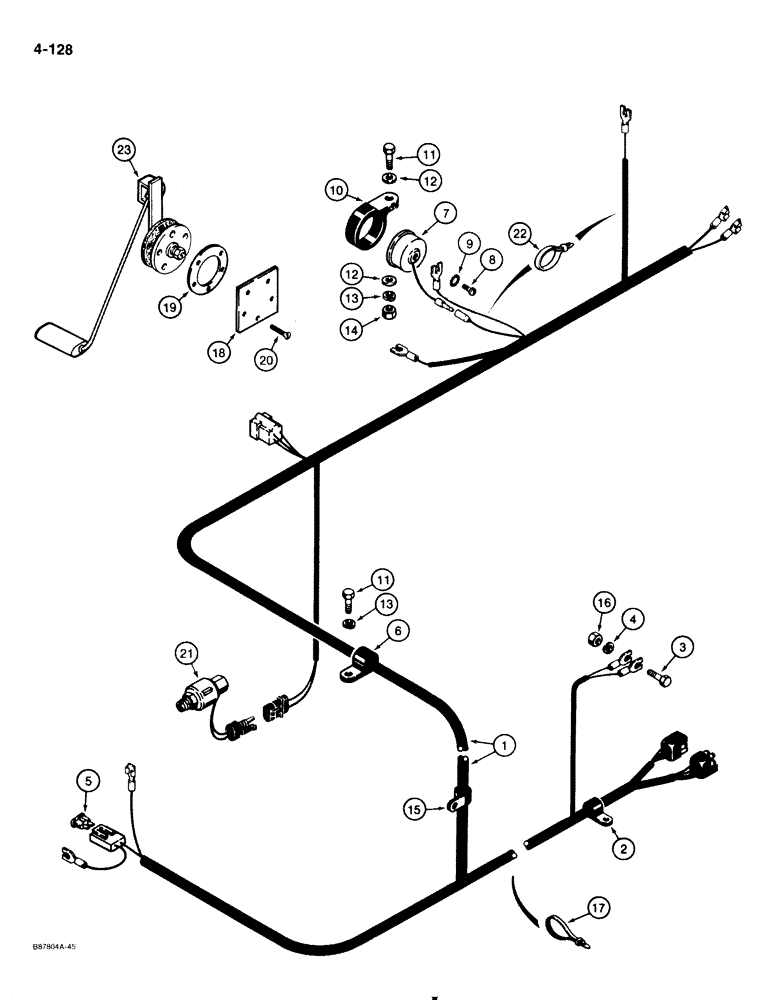

Запчасти Case 1818 (4-128) - REAR HARNESS, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

D136754

HARNESS

rear

1шт.

2

49855

CLAMP

P-type, rear harness

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

5

A149802

FUSE

20 amp

1шт.

6

38188

CLAMP

P-type, rear harness

1шт.

7

D126995

BUZZER

ALARM oil pressure

1шт.

8

182-81

SCREW,Slotted Pan Hd, #8-32 x 3/16"

machine, pan head slotted, No. 8 - 32 NC x 3/16"

1шт.

9

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

1шт.

10

D120561

CLAMP

P-type, at oil pressure alarm

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

195-518

WASHER,1/4", SAE

flat, 1/4", plated

2шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

425-104

NUT,1/4"-20, Cl 5

hex, 1/4" - 20 NC, zinc plated

1шт.

15

49838

CLAMP

P-type, rear harness and positive battery cable, uses existing lift cylinder hydraulic tube mounting hardware on upper right hand side of chassis

2шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, 5/16" - 18 NC, plated

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

18

D137014

PLATE

cover, sending unit

1шт.

19

104812C3

GASKET,3.05mm Thk

fuel sender

1шт.

20

D75465

SCREW,#10 - 32 x 5/8"

special sealing

5шт.

21

D139832

SOLENOID

fuel shutoff

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

2шт.

23

D122404

SENDER UNIT

SENDER fuel gauge, if used

1шт.
