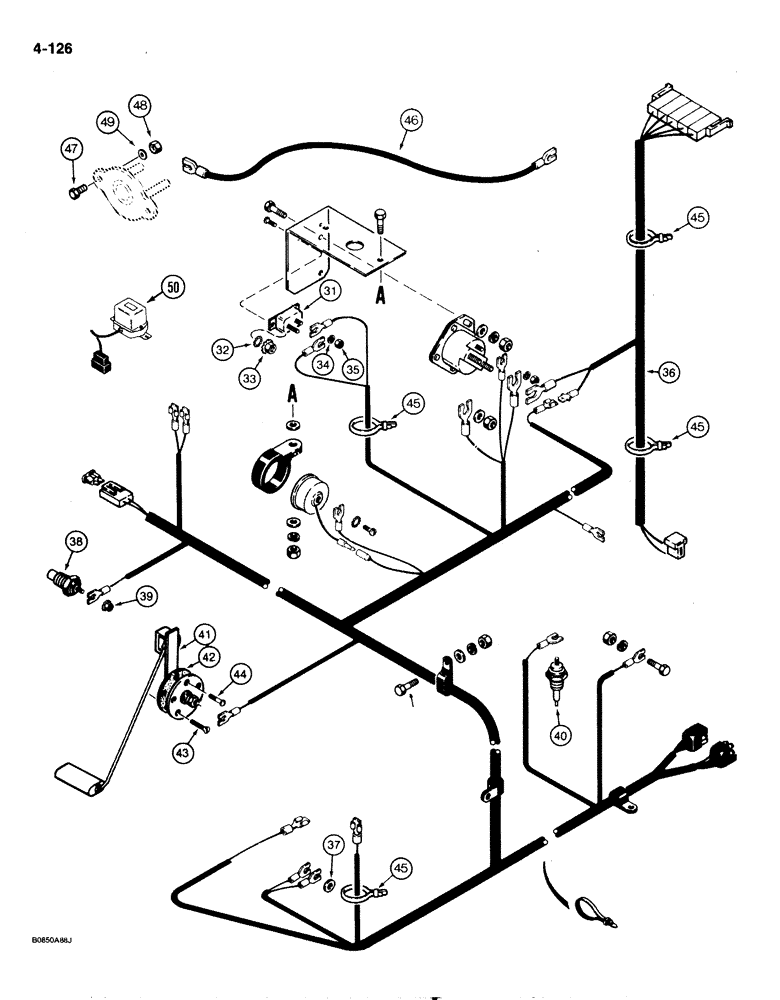

Запчасти Case 1818 (4-126) - REAR HARNESS, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

31

A22877

BREAKER,40A

circuit, 40 amperes

1шт.

32

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

33

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

AND LOCK WASHER, No. 8 - 32 NC, plated

2шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

35

129-37

NUT,#10-32

2шт.

36

D139701

HARNESS

voltage, Serial Range: regulator-alternator

1шт.

37

D83885

WASHER

special, copper, at starter

1шт.

38

A154283

SWITCH

SENDER water temperature

1шт.

39

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER, No.10 - 32 NF, plated

1шт.

40

D132280

SWITCH

hydraulic oil temperature

1шт.

41

D122404

SENDER UNIT

SENDER fuel, Includes: Ref. 39

1шт.

42

104812C3

GASKET,3.05mm Thk

fuel sender

1шт.

43

D75465

SCREW,#10 - 32 x 5/8"

special sealing

4шт.

44

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

machine, pan Phillips head, No.10 - 32 NF x 5/8", plated

1шт.

45

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

46

E99994

ELECTRICAL WIRE

WIRE feed, glow plug, 21-5/8" (550 mm) long

1шт.

47

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

pan, Phillips head, No.10 - 32 NF x 1/2"

2шт.

48

129-77

NUT,Sq, #10-32

square, No.10 - 32 NF

2шт.

49

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

50

1959634C1

REGULATOR

voltage

1шт.
